Solenoid valves for industrial applications - W Series

Other valves

“ ✔ Compatible with a wide range of fluids ”

Ask for a quote

Presentation

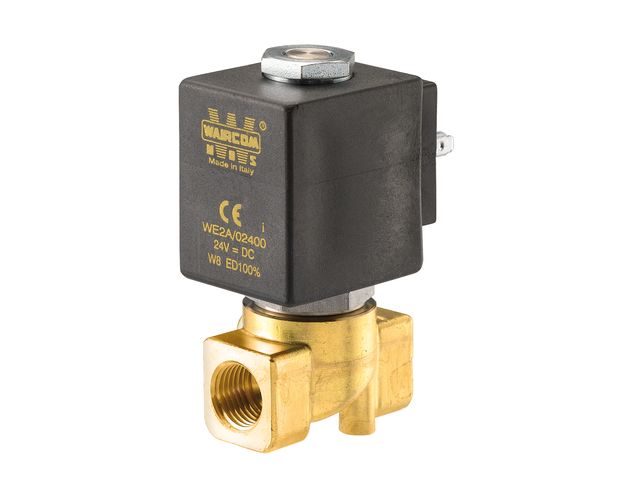

The W series solenoid valves, offered by SENGA, are recommended for use in the industrial and pneumatic sectors. These solenoid valves are made in the 2/2 N.C. function and are used in many industrial applications thanks to their compatibility with a wide range of fluids.

Available in direct drive, servo drive and mixed drive versions, the W series valves have a brass body, stainless steel core and springs, brass sleeve and seals in NBR, EPDM, FPM.

Thanks to their robust construction, the W series solenoid valves are resistant to a temperature range of -10 to +130°C, depending on the type of seal.

https://www.senga.fr/en/products-e-shop

Technical features

2/2 N.C. Control type: direct, assisted, mixed Connections: G1/8'' to G2'' NBR -> Water (max 70°C) - Compressed air (max 90°) - Mineral oils and derivatives - Hydrocarbons (methane, ethane, propane, butane, kerosene and diesel oil) EPDM -> Hot water and steam max.140°C, detergents, sodium and potassium solutions, hydraulic fluids and polar solvents (do not use with mineral oils and greases) FPM (Viton) -> General purpose max.130°C Working temperature: between -10°C and +130°C Materials: stainless steel - (springs, core); brass - (body, sleeve) Seals : NBR, EPDM, FPM
