“ ✔ Axial lever valve ✔ Progressive version ”

Ask for a quote

Presentation

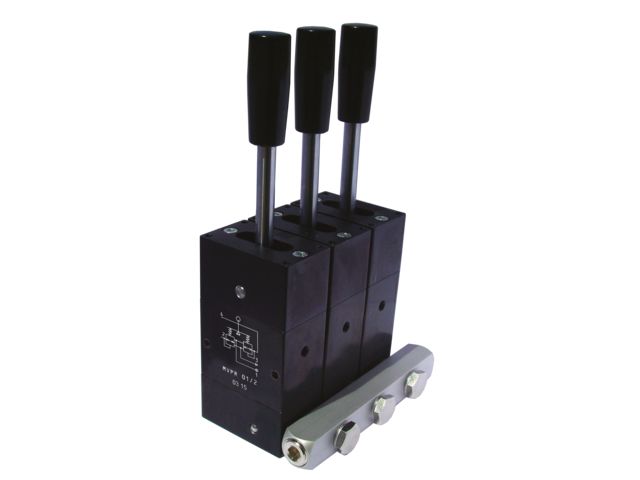

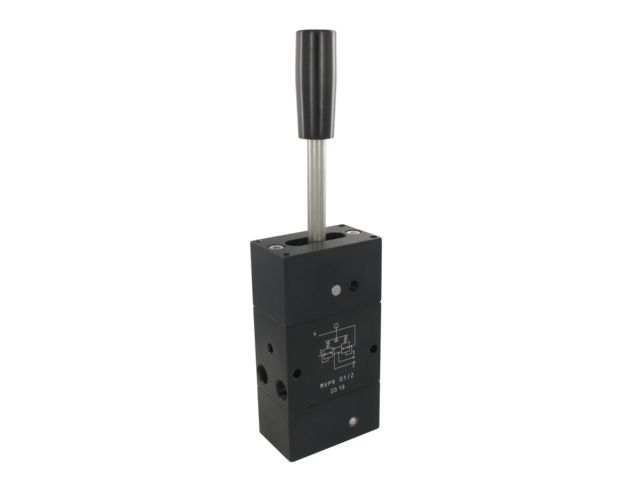

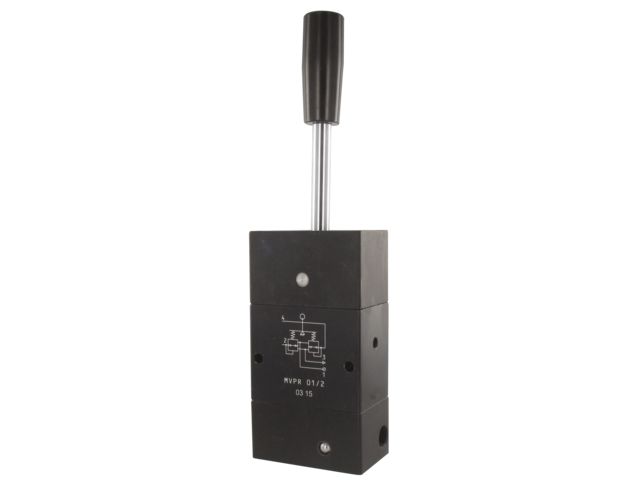

SENGA's MVPR axial lever valves are recommended for industrial vehicles. These valves are progressive pneumatic manipulators suitable for applications using filtered and lubricated compressed air.

Made of aluminium and with a zinc-plated steel lever, the MVPR axial lever valves operate at a working pressure of 0 bar to 8 bar and with a minimum passage of 3.5 mm. Requiring a G1/8" (1-2-4) - M5 (3) connection, the fixing can be made on the upper part by 4 M4 threaded holes.

The working temperature ranges from -20°C to +70°C.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: filtered and lubricated compressed air Progressive axial lever Working temperature: between -20°C and +70°C Working pressure: between 0 bar and 8 bar Minimum passage: 3.5 mm Materials: zinc-plated steel (lever); aluminium (body)
