SmartWireless Site Sentinel CX Sensor Station

SmartWireless Site Sentinel CX Sensor Station - Teledyne Gas and Flame Detection

SmartWireless Site Sentinel CX Sensor Station - Data loggers

SmartWireless Site Sentinel CX Sensor Station - produit présenté par Teledyne Gas and Flame Detection

SmartWireless Site Sentinel CX Sensor Station

Data loggers

“ Up to 4 wired gas detectors Optional strobe & horn ”

Ask for a quote

Presentation

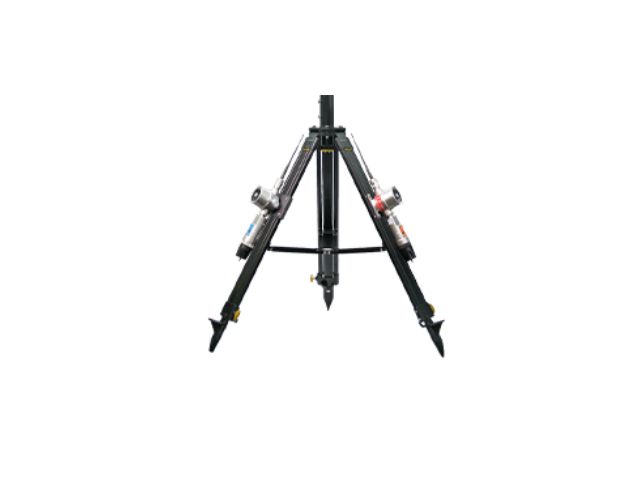

The SmartWireless Site Sentinel CX sensor station is an accessory to any Detcon wireless RXT transceiver or wireless controller and is easily and economically deployable in both permanent and temporary installations. The CX wirelessly transmits the data from up to 4 wired gas detectors back to wireless controller and includes a battery that powers the radio, alarm devices, and the attached sensors. The Sentinel CX is compatible with Detcon’s Model RXT transceivers. Flexible and expandable, a Site Sentinel network can include up to 32 devices and consist of any combination of wireless and/or wired sensors, one or more Site Sentinel control panels, and alarm warning devices.

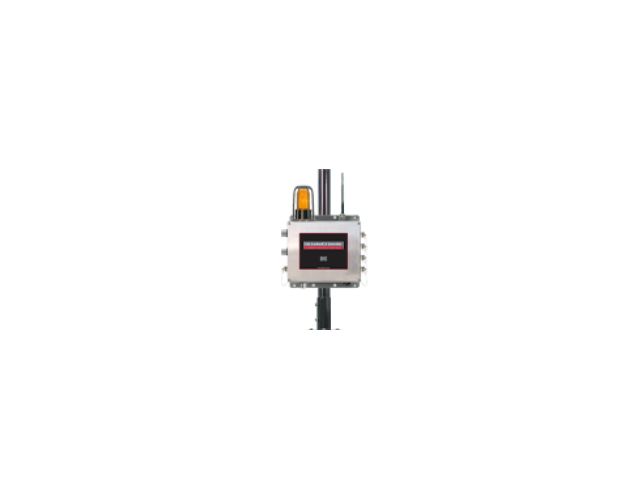

Options include audio alarm, visual alarm, external alarm port, and up to 4 external wired sensor inputs. Standard features include a power-in port and power switch. The control panel is rated for Class 1, Division 2; Groups B, C, D hazardous areas. Power is provided by an internal rechargeable battery and/or 14 to 30VDC. Operating time is 1-2 months before recharge is required.
