Presentation

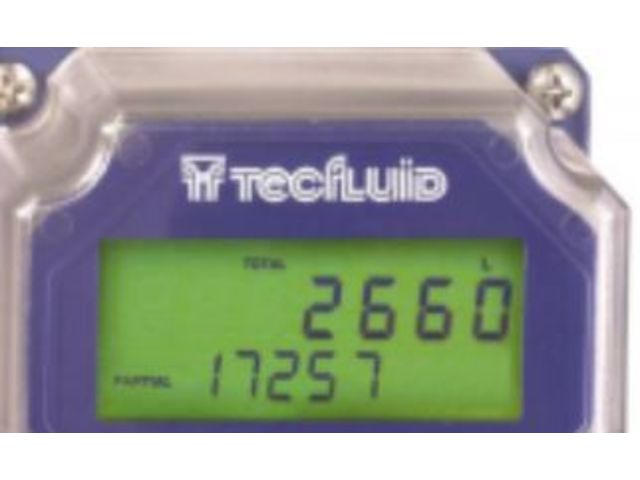

The pulse counter CIP II is designed to work with TECFLUID’s volumetric counters COVOL and turbines. The circuit is based on a microprocessor that, in function of the pulses per unit of volume programmed, totalizes the volume that flows through the meter and shows this value on the display. The CIP II has two volume totalizers, one that can be reset (partial) and the other that cannot be reset (total). This instrument is battery powered and doesn’t require any wiring. This makes its installation very easy.

Technical specifications:

Operates with volumetric counter COVOL and turbine TM-44
CR-2450 lithium battery
Nominal voltage: 3V
Capacity: 560 mAh
Power consumption: 8 μA

Totalizer Counter

N. of digits: 7
Size of the digit: 8 mm
Reset: Cannot be reset

Partial Counter

N. of digits: 5
Size of the digit: 6 mm

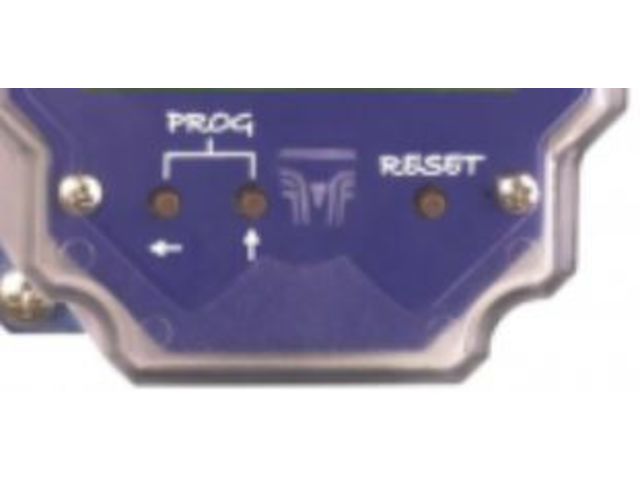

Reset: By means of push button or magnet.

General characteristics

Ingress protection: IP65
Ambient temperature range: 0 … +60 ºC
