SISTO Armaturen S.A.

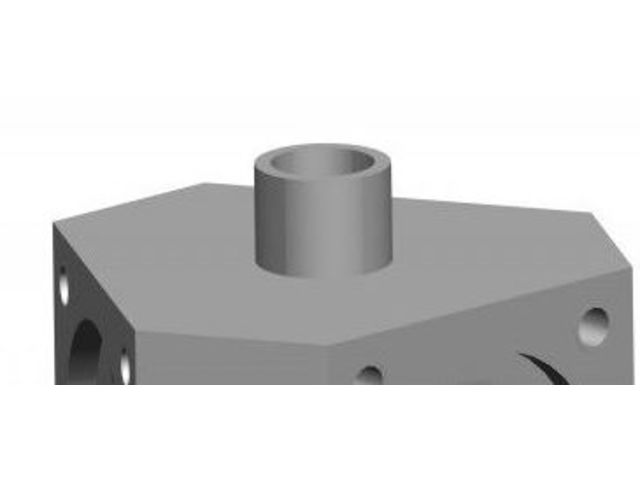

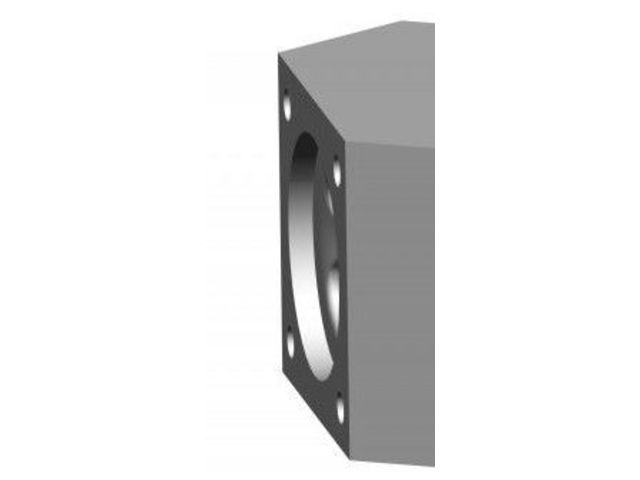

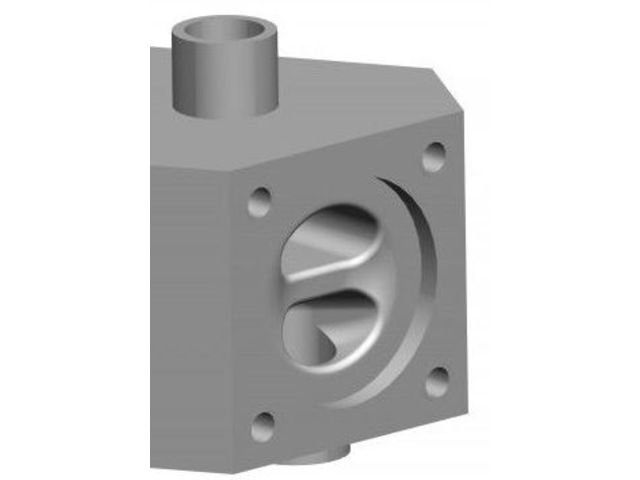

SISTO-CM336 Multi-Port Valve, forged body, PN16

Membrane valves

The Ethernet system for force-distance measurement MSX-E3017 has 1 incremental counter input, 4 differential inputs, 24-bit, and 2 digital I/O, 24 V. It was especially developed for force-distance...

Ask for a quote Receive Documentation Contact the supplier

SISTO-CM336 ? Multi-port valve ? Unique design with enclosed diaphragm ? Diaphragm with spiral support starting with size MD65 ? With manual or pneumatic actuator ? Shut-off and sealing to atmosphere by diaphragm, therefore two components in contact with the fluid handled only: body and diaphragm ? Butt weld ends or clamped connection ? Body materials: forged stainless steel and other alloy materials ? Diaphragm materials: EPDM, TFM/EPDM bonded, TFM/EPDM 2-piece ? Available nominal diameters: DN6–DN100 ? Operating temperature: – 20°C to + 160°C ? Permissible operating pressure: vacuum up to 16 barg/ optional 20 barg Benefits: ? Suitable for applications up to a line pressure of 16 barg ? Increased operating reliability ? Self-draining ? No dead volume ? No contamination of fluid handled ? Suitable for CIP/SIP ? Maintenance-free ?Compact, space-saving design

Download the complete technical features
