Pneumatic 3-way shut-off valves for air and vacuum

Membrane valves

Ask for a quote

Presentation

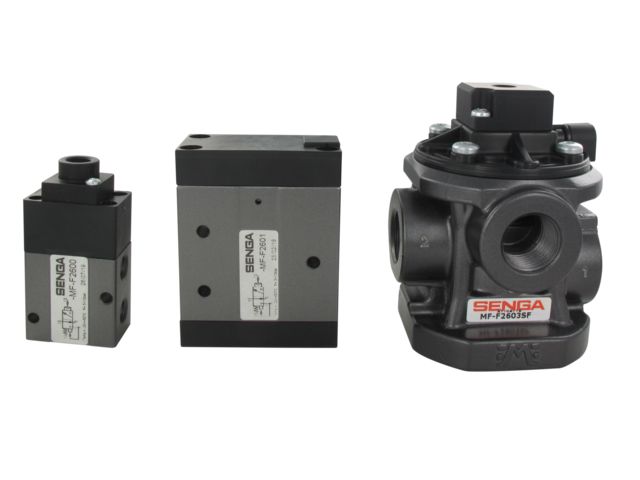

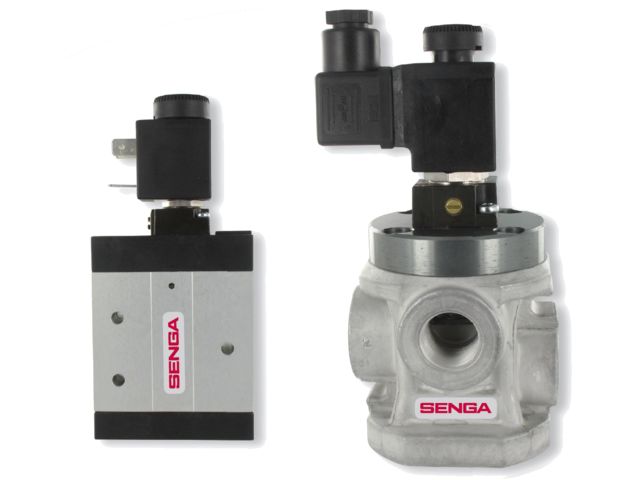

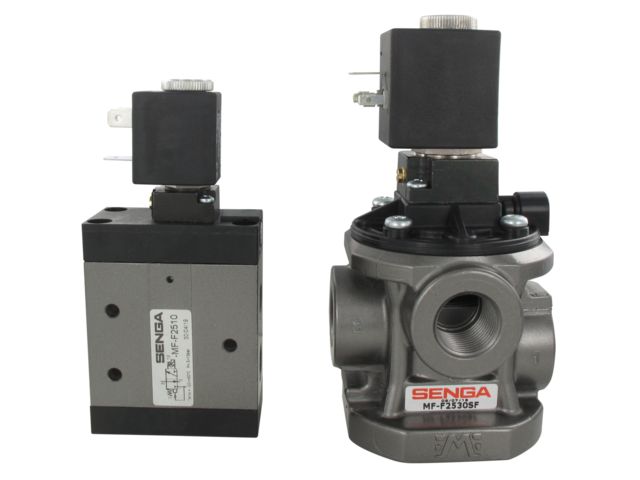

The 3-way solenoid valves with shutter for air and vacuum are marketed by SENGA. They are 3-way valves with a balanced valve system from 1/8" to 2". They have a polyurethane seal for the valve and the control diaphragm, guaranteeing excellent resistance and long life.

Suitably configured, these solenoid valves operate :
With compressed air under servo control of the internal pilot or the external pilot for low pressures
With vacuum servo-assisted by compressed air, and with vacuum servo-assisted by vacuum

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: Air filtered at 50μ without lubrication. Working temperature: between -20 °C and +50 °C Working pressure: between 3 bar and 10 bar Dynamic seals: polyurethane Static seals: NBR Vacuum capacity: 755 mm Hg
