Shut-off valve double sealing DCX3DE

Shut-off valve double sealing DCX3DE - DEFINOX SAS

Shut-off valve double sealing DCX3DE - Regulation valve

Shut-off valve double sealing DCX3DE - produit présenté par DEFINOX SAS

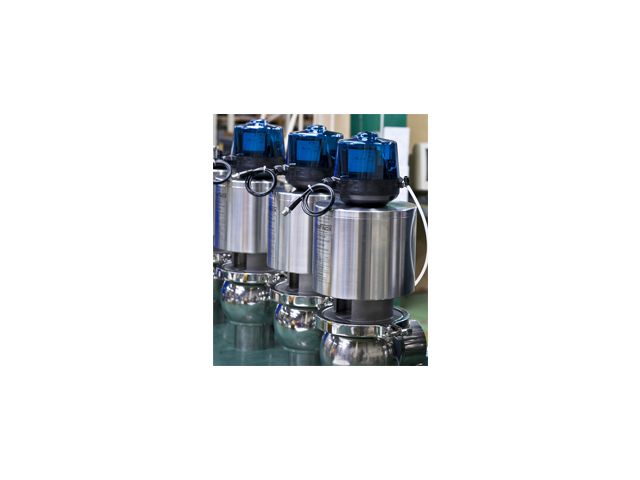

Shut-off valve double sealing DCX3DE

Regulation valve

Ask for a quote

Presentation

The DCX3 DE double sealing changeover valve performs the usual functions of a standard DCX3. It also enables a potential leak to be detected between the two isolated zones thanks to a chamber connected to the atmosphere.
This valve is an alternative to the mixproof leak chamber valves.

From DN 51 to DN 104
PFA floating seal, perfectly cleanable, ensuring perfect leaktightness at high temperature
Spherical body with thick walls, different configurations possible: + T L
Double non-mixproof plugs
Leak chamber preventing any risk of mixing between lines
Numerous connections possible: SMS, DIN, Clamp
Great resistance to expansion stresses and chemical products
Supports overpressures under the plug with release to the leak chamber
Instantaneous visualisation of any leaks by the leak indicator
Optimal cleanability of the chamber and leak indicator with valve closed thanks to cleaning indicator, as option
Complete interchangeability of subassemblies
Easy and quick maintenance thanks to clamp subassembly assembly
