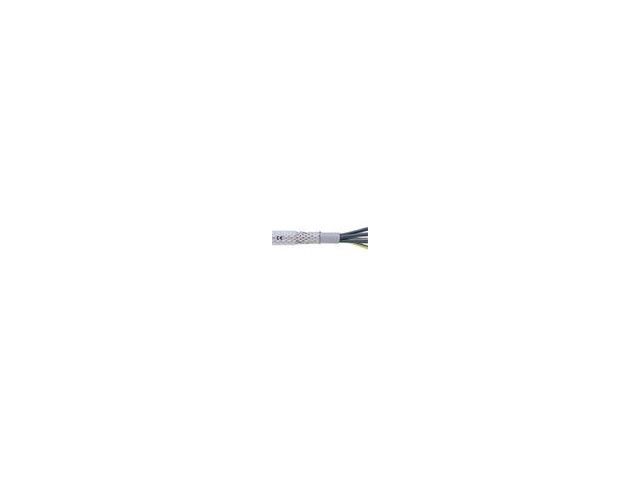

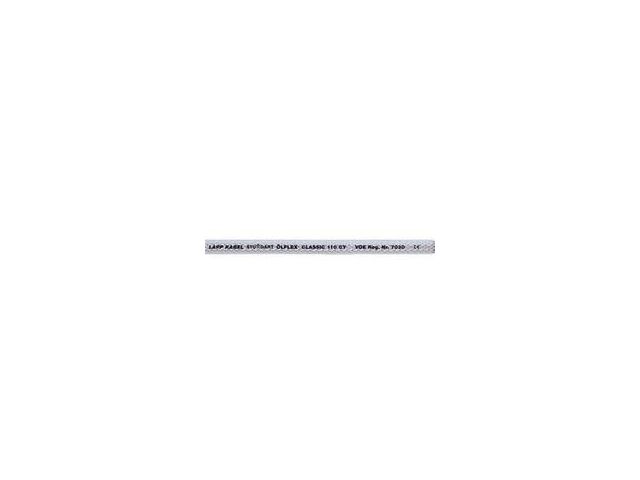

Screened PVC control cable with transparent outer sheath | ÖLFLEX CLASSIC 110 CY 4G2,5

Cables

Ask for a quote Receive Documentation Contact the supplier

ÖLFLEX® CLASSIC 110 CY - PVC control cable, VDE registered, screened, flexible and numbered for various applications, U0/U: 300/500V

  • CPR: Article number choice under www.lappkabel.com/cpr
  • VDE reg. no. 7030
  • EMC-compliant
Benefits
  • Space-saving installation due to small cable diameters
  • High electrical performance due to 4 kV test voltage
Application range
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
  • Conveyor and transport systems
  • In EMC-sensitive environments
    (electromagnetic compatibility)
Product features
  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • High degree of screening
    low transfer impedance
    (max. 250 Ω/km at 30 MHz)
Norm references / Approvals
  • VDE reg. no. 7030
Product Make-up
  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • PVC inner sheath, grey
  • Tinned-copper braiding
  • PVC outer sheath, transparent
