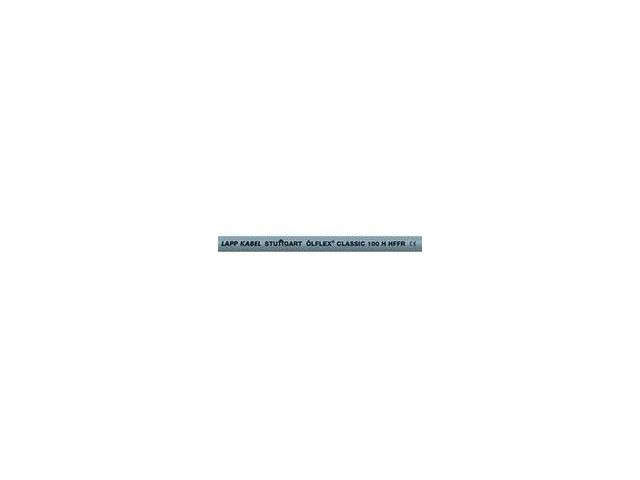

ÖLFLEX® CLASSIC 100 H - halogen-free flexible cable, HFFR and oil-resistant. Power and control cable for various applications, CPR, nominal voltage 450/750V.
Benefits
-
Easy handling and installation due to very flexible cable type
-
Wide application range due to excellent product features
Application range
-
Public buildings like airports or railway stations
-
Plant engineering, Industrial machinery
Heating and air-conditioning systems
Stage applications
-
Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
-
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
-
Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable)
-
No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
-
Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
-
Low smoke density according to IEC 61034-2
-
Oil-resistant according to EN 50363-4-1 (TM5)
and UL OIL RES I and UL OIL RES II
-
Ozone-resistant according to EN 50396
Norm references / Approvals
-
Based on IEC 60227-5 and EN 50525-2-51
-
Based on EN 50525-3-11

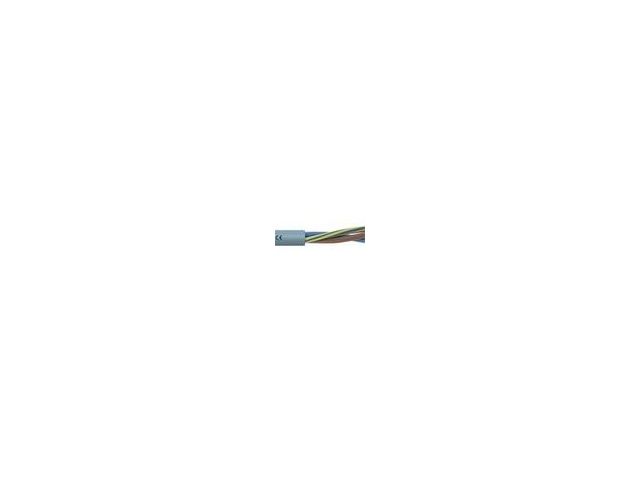

Product Make-up
-
Fine-wire strand made of bare copper wires
-
Core insulation: Halogen-free
-
Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
