Presentation

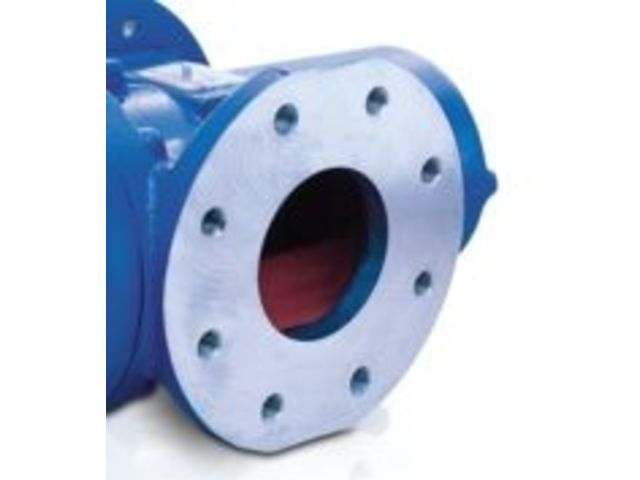

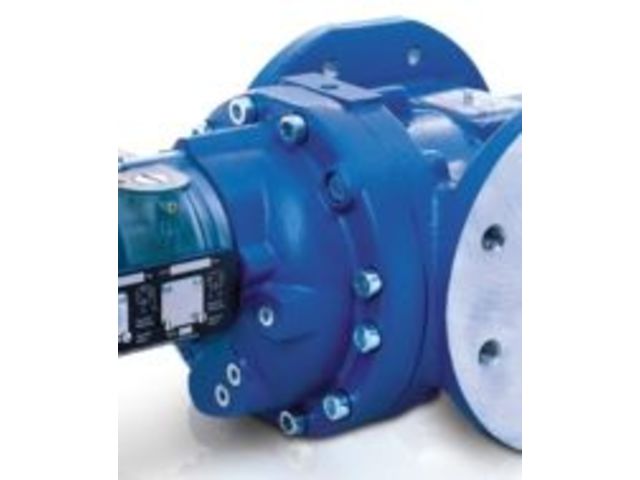

AEREZN rotary piston gas meter

With its Za/Zc/Ze series gas meters, AERZEN provides reliable precision measurement technology for the energy supply industry – and the biggest series available on the market. Developed for measuring gaseous media in the extended range 1:160. Extremely low-maintenance, with an oilchange interval of 16 years. And approved to MID (European Measuring Instruments Directive 2004/22/EC). AERZEN gas meters are available with an analogue counter or with an integrated smart encoder. This digital counter offers a range of benefits, such as the elimination of measuring errors, precise calculation of gas consumption and much more, and can be retrofitted economically at any time.

The advantages at a glance:

Widest range on the market up to G 4000 (6,500 m3/h)
Casing pressure rating PN 10 or PN 16
HTB series designed for 5 bar operating pressure (G 40 - G 400)
Extended measuring range up to 1:160
Guaranteed measuring accuracy and measurement stability within the calibration validity period
Re-calibration every 16 years, unlimited for G 1600 and larger

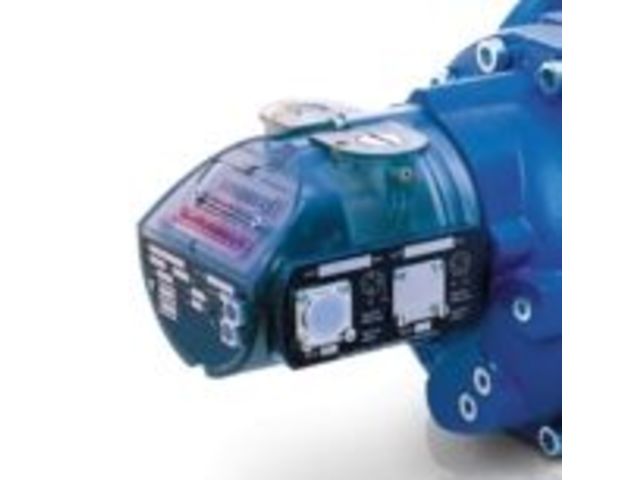

Double roller-type counter, alternatively electrical counter
No straight runs of pipe required compared to turbine-type meters and / or other systems
Connection for pressure and temperature measurements are available on both sides of the housing
Flexible customer-oriented solutions by additional equipment
