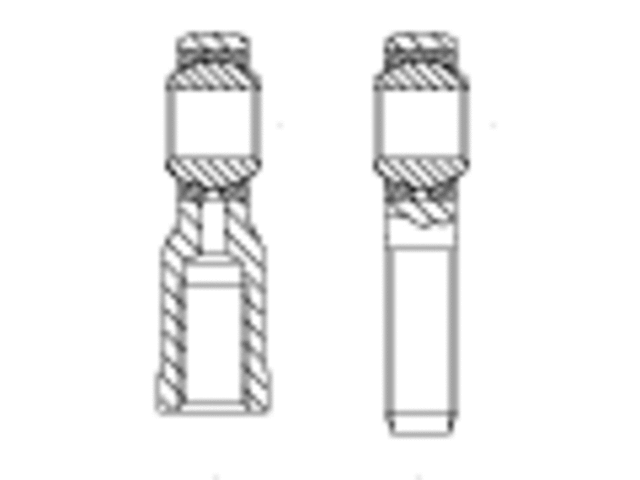

Rod ends dimension series K Standard maintenance free

Assembly systems and components

“ Mating materials: Steel on PTFE Maintenance-free ”
Ask for a quote Receive Documentation Contact the supplier

Inner ring: Antifriction bearing steel, hardened, ground and polished.

Outer ring: Brass lined with an antifriction film, consisting of PTFE, cold formed around inner ring.

Housing: Sizes 5 to 12 free-cutting steel, sizes 14 to 50 tempering steel (standardised), all sizes galvanized and chromatised. The spherical bearing ia pressed into the housing and caulked at both sides.

Special versions:

- Housing heat-treated, for static load capacity C0 see -V
- Housing made from high-grade tempering steel (heat-treated), for static load capacity C0 see -L
- Housing crack-tested
- Sliding face of inner ring 5 um to 10 um hard chromium plated
- Further versions available on request.

OTHER PRODUCTS ASSEMBLY SYSTEMS AND COMPONENTS FROM ASKUBAL

Rod ends dimension series K Pneumatic version stainless steel maintenance free

Rod ends dimension series K Pneumatic version stainless steel maintenance free

 Ask for a quote
Spherical bearings dimension series K Standard maintenance required (Type G)

Spherical bearings dimension series K Standard maintenance required (Type G)

 Ask for a quote
Spherical bearings dimension series K Standard maintenance free (Type G)

Spherical bearings dimension series K Standard maintenance free (Type G)

 Ask for a quote
Spherical bearings dimension series K Stainless steel version maintenance required ( Type G )

Spherical bearings dimension series K Stainless steel version maintenance required ( Type G )

 Ask for a quote
Spherical bearings dimension series E,G,W Stainless steel version ( Standard )

Spherical bearings dimension series E,G,W Stainless steel version ( Standard )

 Ask for a quote

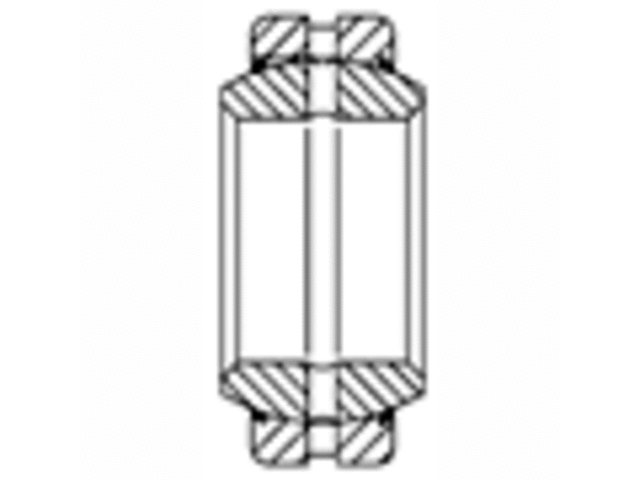

Spherical bearings dimension series E,G,W HO2RS version (standard)
