ROBOT HYBRID ADIY200

Dosing robot

“ The ADIY200 is a robot hybrid. ”

Ask for a quote

Presentation

Robocol propose a wide range of industrial dosing robots, such as, digital table, robot Scara, and Cartesian robot.

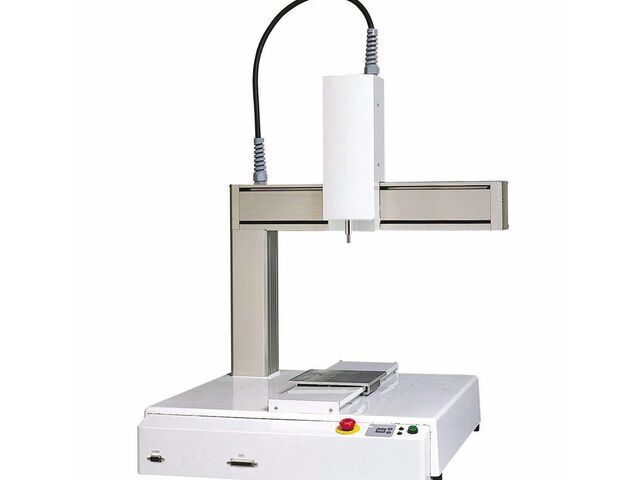

The ADIY200 is a hybrid robot with 3 axis for polyvalent tasks such as dosing, dispensing, screwing, filling, spraying, prehension(the action of grasping), handling,assembly, ...

Ideal for applications requiring precise robotics and high speed.

Working speed 500mm/sec. Capacity of 100 programs.

This digital table is easy to use through a box of learning. The box is compact,accurate and economic.

All types of activities industry : automotive, electronics, plastics, pharmaceutical, cosmetics, food industry...

Technical features

Dimension : 350 x330 x475 mm Surface of working : X : 200mm, Y : 200mm, Z :50mm Method of programing : Speed X&Y/Z (mm/sec) : 0.1*500/300 Resolution : 0.001mm/Axe Capacity of memorie : 100 programs-- 4000 points by program System of back-up : Memory card Motor : motor step by step Interpolation linear and circular : PTP/CP method Alimentation electric : AC110˜220V

Download the complete technical features
