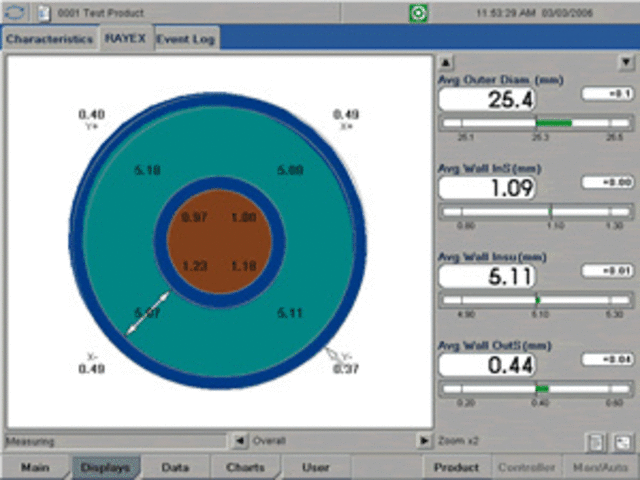

RAYEX® is a highly developed system based on x-ray tomography. (Patents US 5 518 681, US 5 795 531, and CH 685 336 A5). During the extrusion process, RAYEX® measures the wall thickness, eccentricity, diameter, and ovality of multi-layer cables with XLPE and EPR insulation, multi-layer pipes with foam core, composite pipes, and multi-layer hose. RAYEX® systems have been in use for years on various production lines and processes with great success. Horizontal MDCV lines ("long die") In Silane, Sioplast/Monosil processes In foam core pipe extrusion Important Features: Measures thin semi-conductor and insulation layers down to 0.3 mm (.012 in.) Simultaneous and uninterrupted scanning in X and Y directions with highest precision High scan rate and screen update (every 1...3 s) Measures thin semi-conductor and insulation layers down to 0.3 mm (.012 in.) Simultaneous and uninterrupted scanning in X and Y directions with highest precision High scan rate and screen update (every 1...3 s) Multi-colored, easy to understand display Automatic control, thanks to short measuring intervals High resolution and accuracy, thanks to "Micro Focus" beam and UMX x-ray source. Your Advantages: Shorter start-up times Considerable material savings Increased throughput "Process transparency" at all times Short payback Seamless QC documentation Typical Display Screens: Cross-section of Multi-layer Cables, e.g.: Medium Voltage High Voltage Specialty cables Typical Display Screens: Cross-section of Multi-layer Cables, e.g.: Medium Voltage High Voltage Specialty cables
