Pyrosensors

Pyrosensors detect thermal radiation in a range between 5.5-14 ?m, which is for example, emitted by the human body. The pyroelectrical effect means that a ferroelectric sensor element absorbs the thermal radiation. Consequently, the spontaneous polarisation of the material is changed, which generates a surface charge. This is used for the detection of the radiation. It is important that, the radiation source is moving during measurement. Only then a change in the polarisation occurs (hence the name “motion detector”).

Features

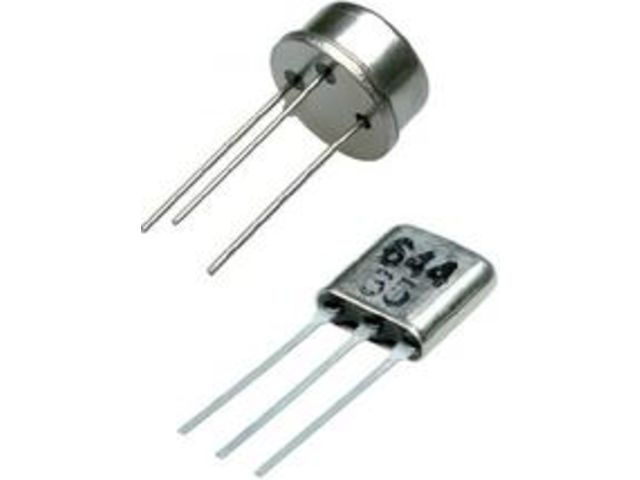

• TO- or flat package (with Si-window)
• 1 - 12 elements
• Various detection characteristics
• Signal-Output: 2900 ... 7300 mVp-p
• Supply voltage: 2.2 ... 15 V
• Suitable Fresnel lenses available
