Pull sock

Domestic installations range

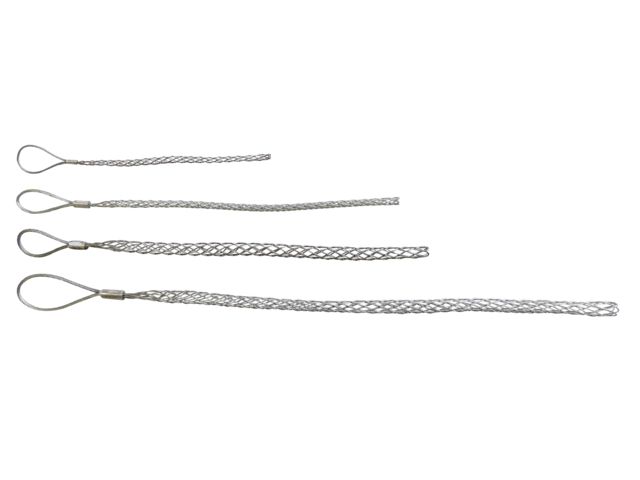

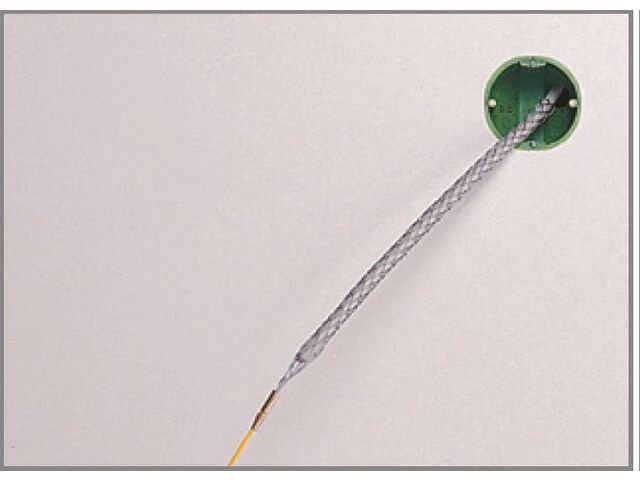

These single loop cable pull socks are specially designed for domestic installations.
Made by hand, they are particularly flexible and can be used in small diameter gains.
They allow electricians to quickly and easily pull electrical wires, electrical cables or telecom cables, without wasting time hooking them up.

To insert or remove the cable: compress the sock to expand it.
Once the cable is in the sock: the more you pull, the tighter the sock becomes.

High strength galvanized steel wire.
The tensile force is equal to the breaking force reduced by a safety factor of 1.5.

The wire ends are neither soldered nor crimped, but braided back to avoid injuring the operator or damaging the cable.

These models are available from stock.

Tire cables should be checked before use, as damage may affect their strength.

Cable diameter
(mm) Breaking force
(kN) Pulling force
(kN) Working length
(mm) Weight
(g) Code 6-9 2.0 1.3 120 5 CHT0609A12 9-12 2.0 1.3 180 5 CHT0912A18 12-15 2.0 1.3 230 15 CHT1215A23 15-19 8.1 5.4 280 25CHT1519A28


Underground wiring

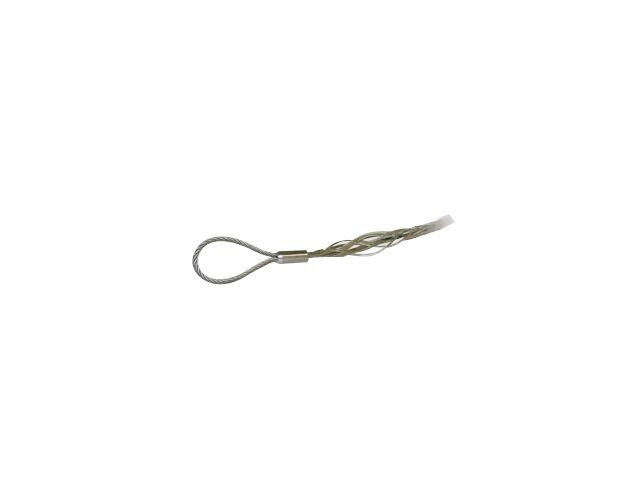

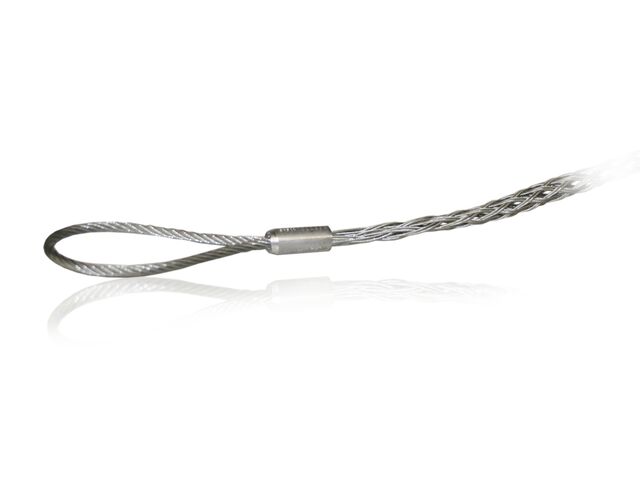

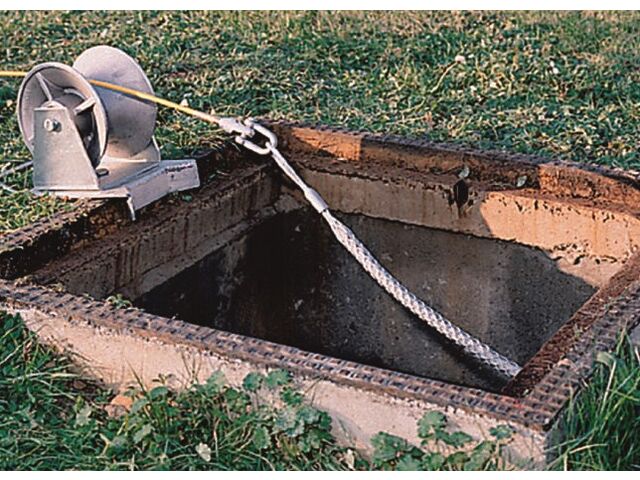

These single loop cable pull socks are specially designed for underground cabling.
Handcrafted with very flexible 19-strand yarn, they maintain their suppleness even under high tension.
Made of reinforced steel (also available in stainless steel).
The crimped sleeve is chamfered in the direction of draw to avoid catching in the pipes.
The wire ends are neither soldered nor crimped, but braided back to avoid injuring the operator or damaging the cable.

The tensile force is equal to the breaking force reduced by a safety factor of 2.

To insert or remove the cable: compress the sock to expand it.
Once the cable is in the sock: the more you pull, the tighter the sock becomes.

These models are available from stock.

Tire cables should be checked before use, as damage may affect their strength.

Cable diameter
(mm) Breaking force
(kN) Pulling force
(kN) Working length
(mm) Weight
(g) Code 10-20 18.8 9.4 600 220 CHV1020A60 20-30 22.6 11.3 600 350 CHV2030A60 30-40 37.0 18.5 600 500 CHV3040A60 40-50 55 27.5 600 800 CHV4050A60


Other apps

When it comes to cable pull socks, we can meet the most varied requests as standard

Matter :
- galvanized steel
- stainless steel
- synthetic with Kevlar (non-conductive, non-magnetic, non-corrosive).



In my opinion :
- closed with single buckle

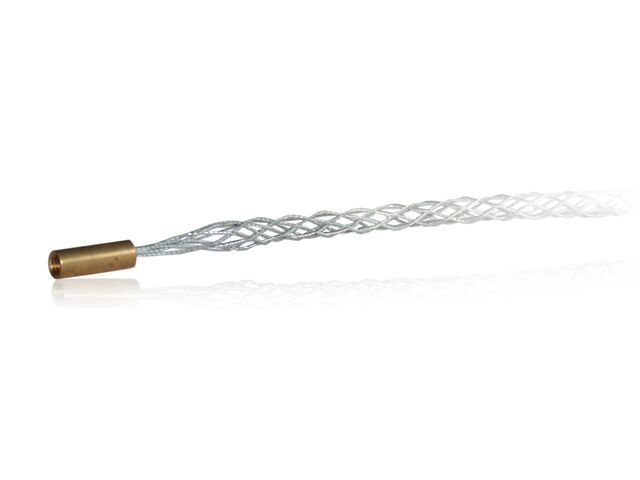

- closed with M5 connector
- open with side buckle
- open with double buckle (with or without retaining laces)

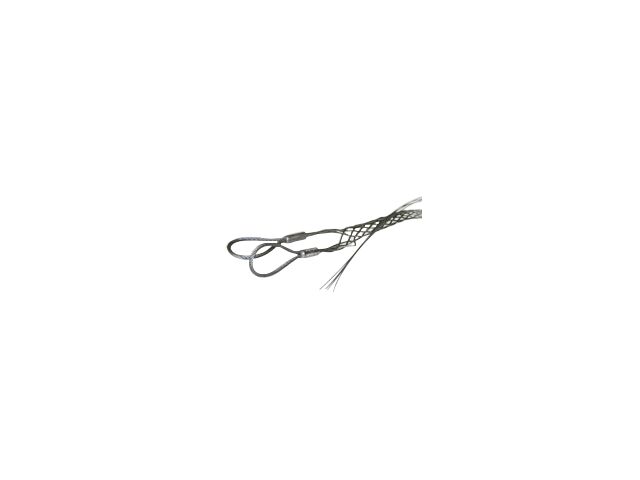

- multiple allowing 3 cables to be pulled at the same time (3 braids and a common loop).

Cable diameter:
up to 180mm.

For all applications:
- domestic installations
- underground cable
- overhead wiring (high security triple braid)
- suspension of loads
- replacement of used cables (tire-cable sleeves)
- for fiber optic cables (extremely flexible wires).

All tire cables are made by hand.

Furthermore, socks can be made to measure according to the customer's needs.
