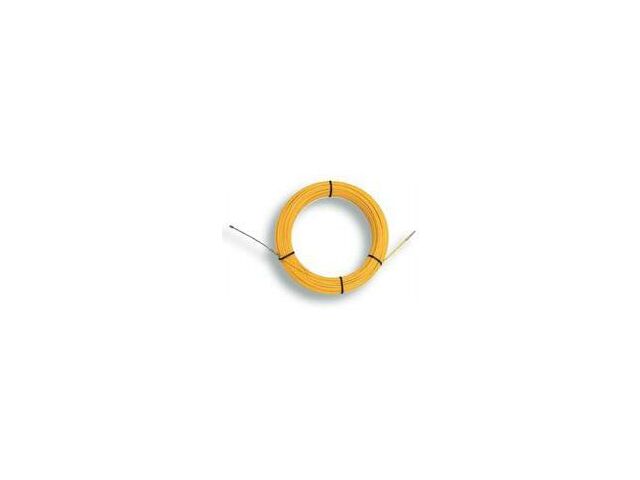

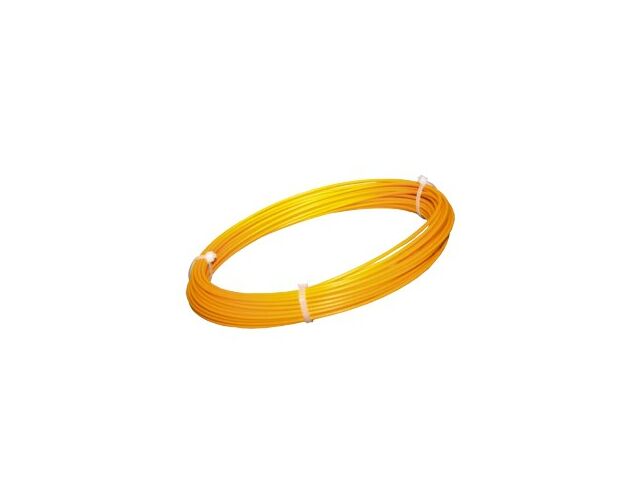

Fiberglass pulling rods are the most efficient way to pull cables, or ropes, into underground conduit.
The fiberglass of our SUNNY® range is of high quality. Its high resistance to pushing and pulling allows it to slip into all ducts.
End caps firmly fixed to the fiberglass have a high resistance to tearing.
The front head has a double function:
- guide head, thanks to its ogive shape
- eyelet, for attaching the cables to be pulled.
Time saving: no end cap to change.
The structure, designed to work on construction sites, have a tubular steel structure, robust and stable.
An integrated brake prevents the fiber from unwinding from the basket by its own tension.
5 lengths to choose from: from 40 meters to 120 meters.
Its originality lies in its folding frame: it is much more compact than the other fiberglass rods and takes up much less space in the vehicle.
Nevertheless very stable on the ground, it is ideal for work on site.
High performance fiberglass diameter 7,2 mm
Breaking force: 28 kN
High security fixation of the ends: drilling and pin + gluing.
Resistance of end pieces to tearing: 7.5 kN
Front end: M12 threaded end cap
+ Ø 25 mm aluminum head, dual function (guide head and pulling eyelet)
+ shackle (bolt Ø 10 mm)
Rear end: M12 threaded end cap

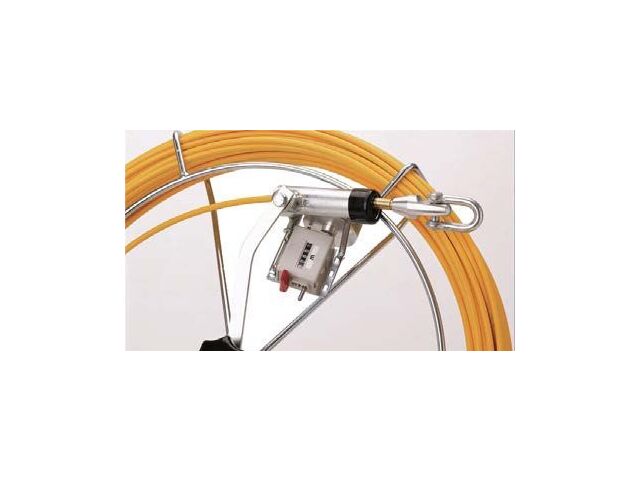

High quality frame in galvanized steel, diameter 600 mm.
Brake by central button.
Fiber guide system.
For repairing, the fiberglass rod comes with:
- 1 connector
- 2 M12 threaded end caps
- 4 pins
- 1 tube of special glue 20g
Many accessories and options:
- cable pulling grips, shackles, other guiding heads
- swivels, coupling unit
- cleaning brushes
- spare fiberglass rod, repair kits.
