Proximity Sensor : VL6180X

Proximity sensors

Suspension ring pivots 180° Suspension ring & weld-on-block of the VLBS-U are undetachable Suspension ring can be angled into position (VLBS-U)

Ask for a quote

Presentation

The VL6180X is the latest product based on ST’s patented Flight Sense™ technology. This is a ground-breaking technology allowing absolute distance to be measured independent of target reflectance.Instead of estimating the distance by measuring the amount of light reflected back from the object (which is significantly influenced by color and surface), the VL6180X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight).

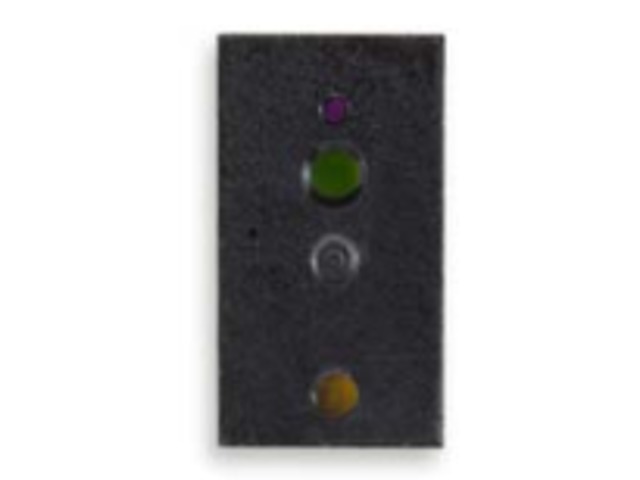

Combining an IR emitter, a range sensor and an ambient light sensor in a three-in-one ready-to- use reflowable package, the VL6180X is easy to integrate and saves the end-product maker long and costly optical and mechanical design optimizations.

The module is designed for low power operation. Ranging and ALS measurements can be automatically performed at user defined intervals. Multiple threshold and interrupt schemes are supported to minimize host operations. Host control and result reading is performed using an I 2 C interface. Optional additional functions, such as measurement ready and threshold interrupts, are provided by two programmable GPIO pins
