Printer protection cover

“ Soundproofing Hardware protection IP65 ”

Ask for a quote

Presentation

Food-processing protective case for AL laser printer

Features :

Body of the cell made of a thermoplastic element thermoformed to obtain the rear and side faces;
Protective case for laser printers, made of 19 mm thick composite material dyed in the mass, which guarantees the watertightness of the case: ideal for food processing environments subject to washing
Connections: the AL laser printer protection case for food processing is delivered with two 7 to 13 mm cable glands to be fitted for the passage of cables, ensuring the tightness of the cell.

Front panel:

Access to the printer from the front;
Thermoplastic flap mounted on a piano hinge and closed by two clamp latches.

Top side:

Two possible cover materials:

- 10 mm thick PVC, mounted on a piano hinge.

- In 6 mm thick transparent PMMA, mounted on two friction hinges.

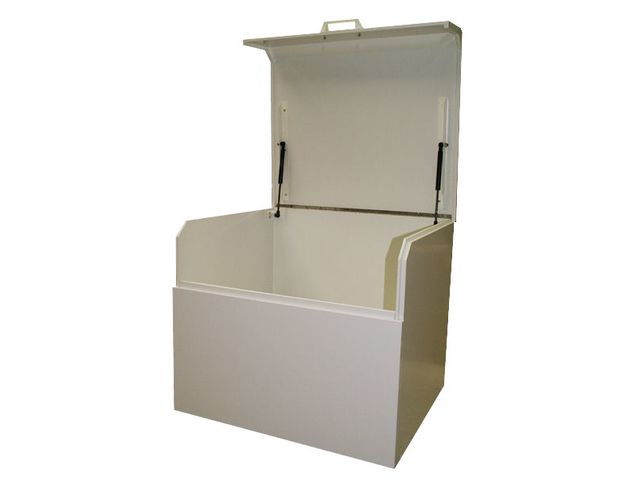

Assisted opening of the enclosure by two pneumatic cylinders to ensure the open position of the element while the printer is being handled;
The cover closes on the flap by interlocking and against the seals at the edges of the openings.
