LM REALISATIONS

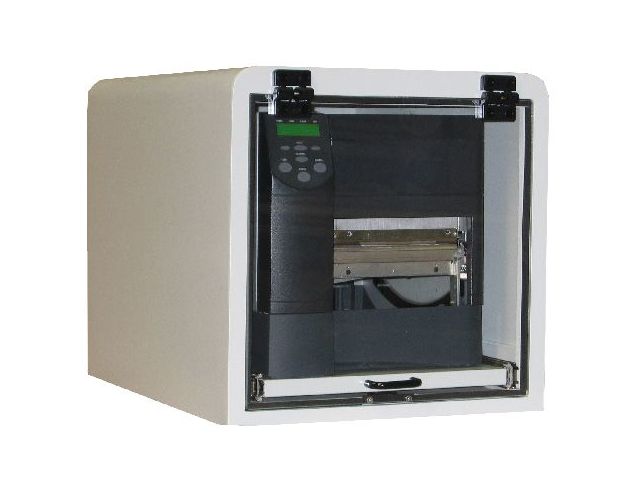

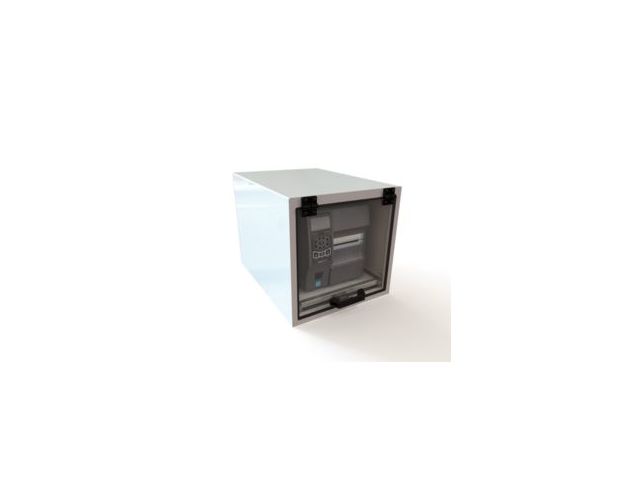

CIT - Protection cell for thermal printers

CIT - Protection cell for thermal printers - LM REALISATIONS

CIT - Protection cell for thermal printers - Printer protection cover

CIT - Protection cell for thermal printers - produit présenté par LM REALISATIONS

CIT - Protection cell for thermal printers

Printer protection cover

“ Ergonomic Waterproof Protection ”

Ask for a quote

Presentation

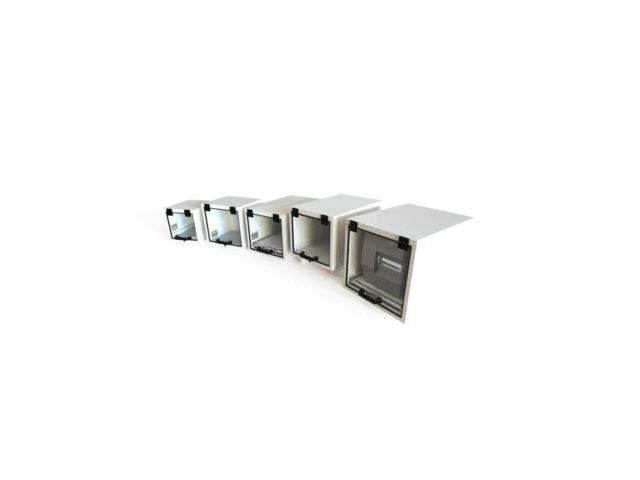

Protection cell for thermal printers of different formats

General characteristics :

- Body of the cell made up of a single thermoplastic thermoformed element allowing
the same structure to obtain the lateral faces and the upper face

- Walls made of 10 mm thick composite material dyed in the mass to guarantee
protection and watertightness of the cell

- Smooth surface of the cell, without retention angles to facilitate cleaning and avoid
and avoid the accumulation of waste

SPECIFICATIONS CIT STANDARD :

- Two hinges allowing the upper body of the cell to be tilted forward for access to the printer
access to the printer and label application operations

- Connections: a system of 2 standard cable glands to be mounted (on the floor) from 7 to 13 mm
for the passage of cables

- Skis for raising the printer to clear the cell to the front.
CIT STANDARD & CIT C SPECIFICATIONS

Front panel:

- Access to printer controls and front panel labels via a lift-up PMMA (transparent thermoplastic) flap.
PMMA (transparent thermoplastic) 6 mm thick

- Closing of the flap by means of a latch with clamp and against the seals.

SPECIFIC FEATURES CIT L & CIT L GM :

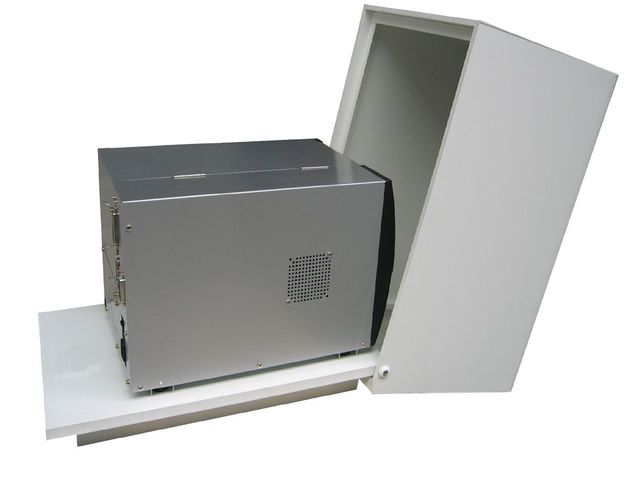

- Pull-out shelf mounted on a stainless steel triple development slide allowing the complete
the printer to be completely free of obstructions.

- Connections: a system of 2 standard cable glands to be mounted from 7 to 13 mm for the passage of
cables

Front panel:

- Access to printer controls and front panel labels via a lift-up PMMA (transparent thermoplastic) flap.
PMMA (transparent thermoplastic) 6 mm thick

- Closing of the flap by a latch with clamp and against the seals.
Special features CIT L GM: 550 mm triple stainless steel slide.

Its advantages :

- Ergonomic cell

- Guaranteed watertightness

- Protection adapted to small and medium format thermal printers
