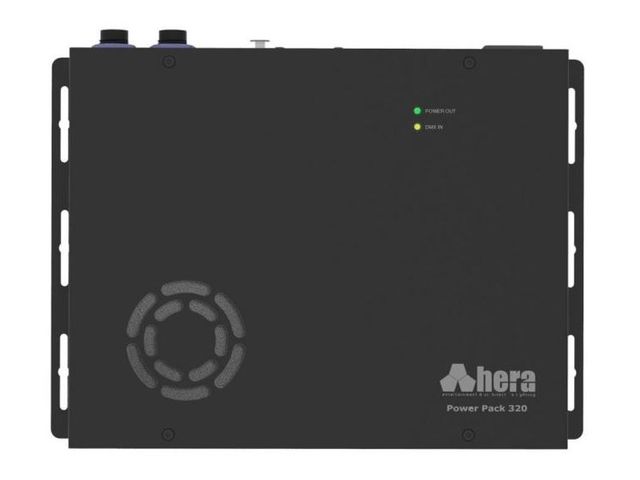

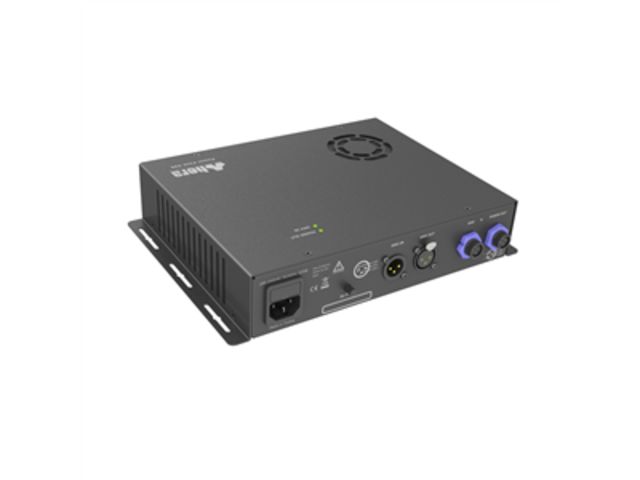

Power Pack : 320

Lighting system accessories

Ask for a quote

Presentation

Power Pack Series presented as type of box in order to prevent complicated combination of power and data cables to provide easy installation structure. In Power Pack 320 wall mount type has full isolated splitter. The by-pass button on the splitter transitable inactive then it provides to communicate with RDM.

It allows you to use without jamming even for long cable distances. All Power Pack Series have LED display in order to show interruption in energy and DMX signal.

Power Packs 320 are produced to use for PD 60 series. It has 90 ~ 264VAC 50/60Hz Universal AC input 3-Pin VDE connection. All DMX inputs are performed with Neutrik® 5 Pin XLR connectors.

• Energy is transmitted by 90 ~ 264VAC 50/60Hz Universal AC input 3-Pin VDE connector.

• Energy output of Power Pack 320 48V / 320W / 6.7A.

• Energy output of each port for Power Pack 320 is 160W.

• Power pack 320 gives output with 5 Pins which has IP66 class protection markings and 2 Full isolated splitters.

• DMX inputs are available in Neutrik® 5 Pin XLR connectors.

• It has short circuit, overload, over voltage, over temperature protections.

• Power Pack 320 can be installed as wall mount.

• It has aluminum sheet metal with powder finishing body.

• Power packs are produced in RAL9005 black color and have black iron screws but according to customers’ demand fixture can be painted to different RAL colors.

OTHER PRODUCTS LIGHTING SYSTEM ACCESSORIES FROM LEDBOX COMPANY

Power Pack : 1000

Ask for a quote

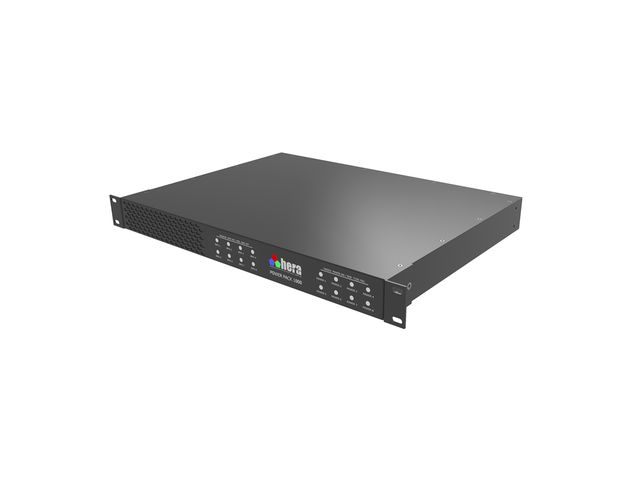

Power Pack : 2000

Ask for a quote

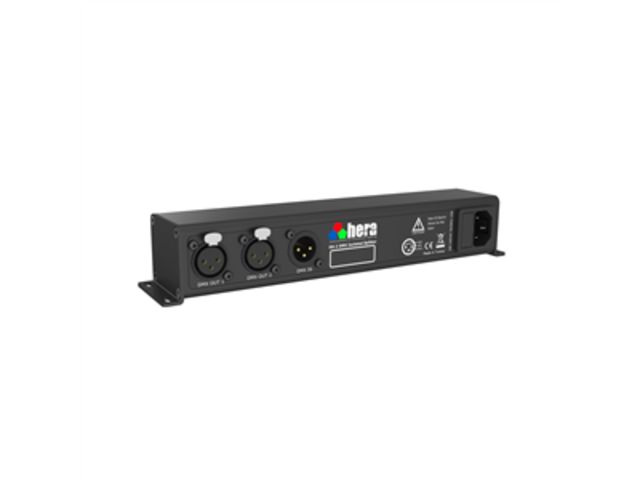

DS-2 / DS-4 / DS-8 DMX Splitter's

Ask for a quote

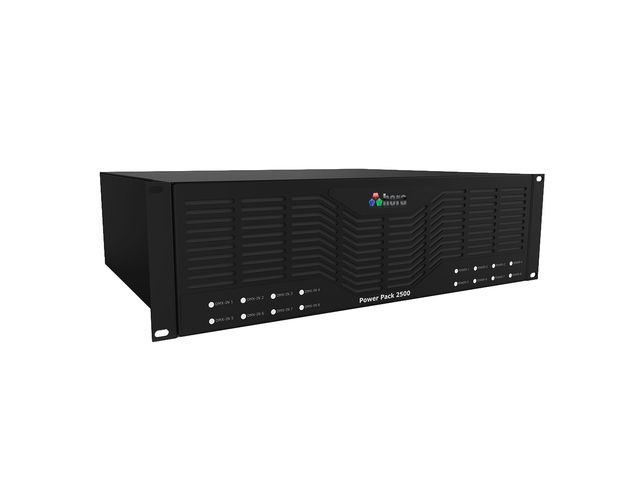

Power Pack : 2500
