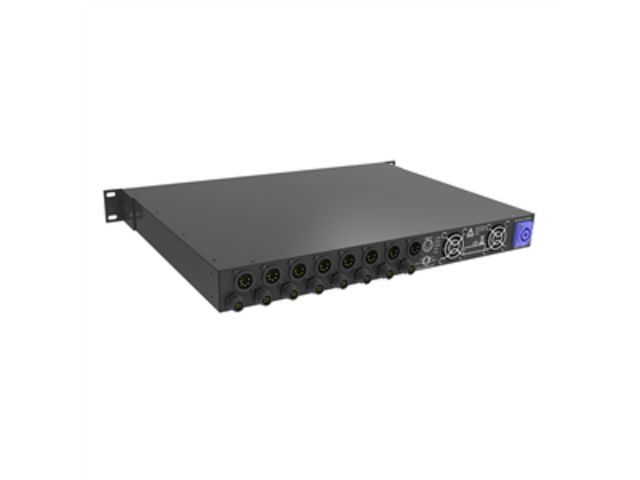

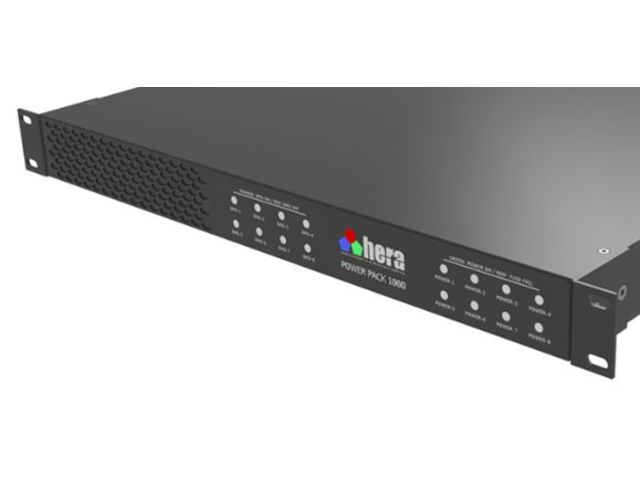

Power Pack 1000 Series presented as type of box in order to prevent complicated combination of power and data cables to provide easy installation structure. Power Pack 1000 19” 1U can be used as Rack Mount and Wall Mount. Power Pack 1000 Series have LED display in order to show interruption in energy and DMX signal.
Power Pack 1000 Series can make RDM feedback. These products have fuses in it. If any fuses blow, Led display will show that problematic channel. Power Pack 1000 can be used safely in Sword and Vertical Tube applications. It has 90 ~ 264VAC 50/60Hz Universal AC input.
AC inputs are made with Neutrik® PowerCON connectors. All DMX inputs are performed with Neutrik® 5 Pin XLR connectors.
• Energy is transmitted by 90 ~ 264VAC 50/60Hz Universal AC input 3-Pin VDE connector.
• Energy output of Power Pack 1000 48V / 1000W / 21A.
• Energy output of each port for Power Pack 1000 is 125W.
• Power Pack 1000 gives output in 8 Mirrored 4 Pins which has IP67 class protection markings.
• DMX inputs are available in Neutrik® 5 Pin XLR connectors.
• It has short circuit, overload, over voltage, over temperature protections.
• Power Pack 1000 can be installed as Rack Mount and Wall Mount.
• It has aluminum sheet metal with powder finishing body.
• Power packs are produced in RAL9005 black color and have black iron screws but according to customers’ demand fixture can be painted to different RAL colors
