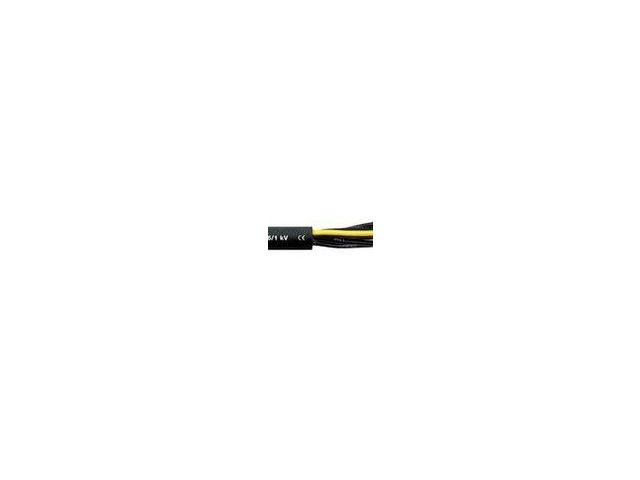

Power and control cable for various applications | ÖLFLEX CLASSIC 110 Black 0,6/1kV 25G1

Cables

Ask for a quote Receive Documentation Contact the supplier

ÖLFLEX® CLASSIC 110 BLACK 0,6/1kV: power and control cable for various applications, PVC, conductor class 5, black cores, number coded, outdoors

  • Good outdoor performance
Application range
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
    Power stations
    Stage applications
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
  • Flame-retardant according IEC 60332-1-2
  • UV and weather-resistant according to ISO 4892-2
  • Ozone-resistant according to EN 50396
Norm references / Approvals
  • Based on VDE 0250-1 and HD 627-1 S1
Product Make-up
  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • PVC outer sheath, black (RAL 9005)

OTHER PRODUCTS CABLES FROM LAPP FRANCE

Screened highly flexible data transmission cable - UL/CSA-listed | UNITRONIC® FD CP (TP) plus

Screened highly flexible data transmission cable - UL/CSA-listed | UNITRONIC® FD CP (TP) plus

 Ask for a quote
Screened data transmission cable with colour code acc. to DIN 47100 | UNITRONIC LiYCY 4x0,34

Screened data transmission cable with colour code acc. to DIN 47100 | UNITRONIC LiYCY 4x0,34

 Ask for a quote
VDE-registered oil-resistant PVC control cable | ÖLFLEX CLASSIC 110 25G0,5

VDE-registered oil-resistant PVC control cable | ÖLFLEX CLASSIC 110 25G0,5

 Ask for a quote
VDE-registered oil-resistant PVC control cable | ÖLFLEX CLASSIC 110 18G1

VDE-registered oil-resistant PVC control cable | ÖLFLEX CLASSIC 110 18G1

 Ask for a quote
Oil resistant multi-standard cable | ÖLFLEX 150 25G0,5

Oil resistant multi-standard cable | ÖLFLEX 150 25G0,5

 Ask for a quote
Halogen-free, highly flexible control cable | ÖLFLEX FD 855 P 18G1

Halogen-free, highly flexible control cable | ÖLFLEX FD 855 P 18G1

 Ask for a quote

Check out all the products from cables from LAPP FRANCE

INTERNET USERS ALSO CONSULTED ON THE CATEGORY CABLES

Model 7707-MTC-2 25 Pin Male to Female D Sub Cable

Model 7707-MTC-2 25 Pin Male to Female D Sub Cable

 Ask for a quote

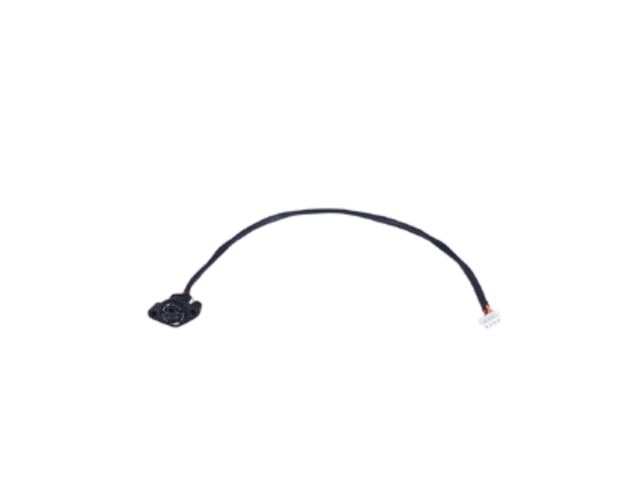

Cable Kit & Adapter: CK8967
