Screened data transmission cable | UNITRONIC PUR CP 7x0,25

Screened data transmission cable | UNITRONIC PUR CP 7x0,25 - LAPP FRANCE

Screened data transmission cable | UNITRONIC PUR CP 7x0,25 - Cables

Screened data transmission cable | UNITRONIC PUR CP 7x0,25 - produit présenté par LAPP FRANCE

Screened data transmission cable | UNITRONIC PUR CP 7x0,25

Cables

Ask for a quote

Presentation

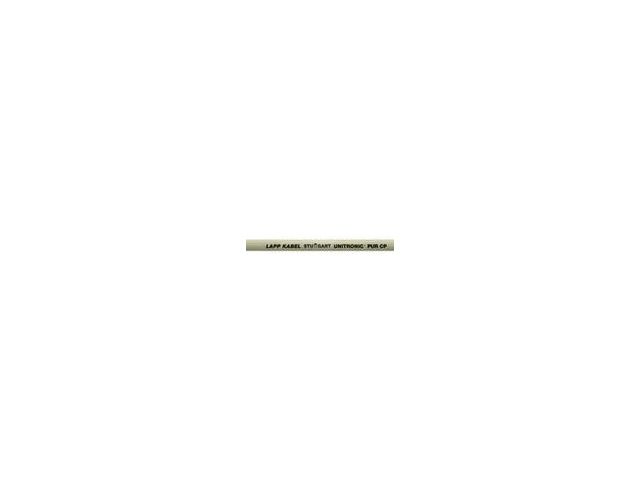

Screened data transmission cable with PUR outer sheath for harsh conditions

UNITRONIC® PUR CP: Low-frequency data cable, VDE 0812 styled, PVC cores DIN 47100 coded, Screened, PUR jacket, Outdoor, Flame retardant, Oil/ Abrasion resistant.

Benefits

Data transmission cable with PUR sheath for increased mechanical stress, wear- and tear-resistant
Increased durability under harsh conditions thanks to robust PUR outer sheath
Overall braid minimises electrical
interference

Application range

Further development of the UNITRONIC® range for harsher ambient conditions where robust and screened cables in small dimensions are required.

Product features

Low-adhesive surface
PUR outer sheath is resistant to most oilsand hydraulic fluids
Special notch and tear-resistance
Good UV-resistance
Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

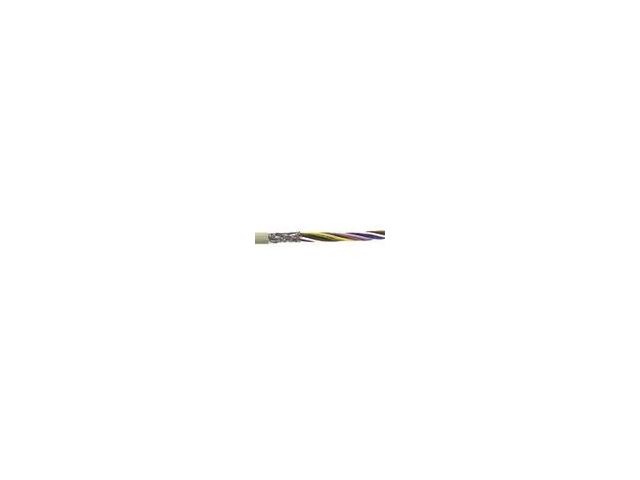

Product Make-up

Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
Core insulation made of PVC
Tinned-copper braiding
Outer sheath made of PUR
Outer sheath colour: pebble grey (RAL 7032)
