Presentation

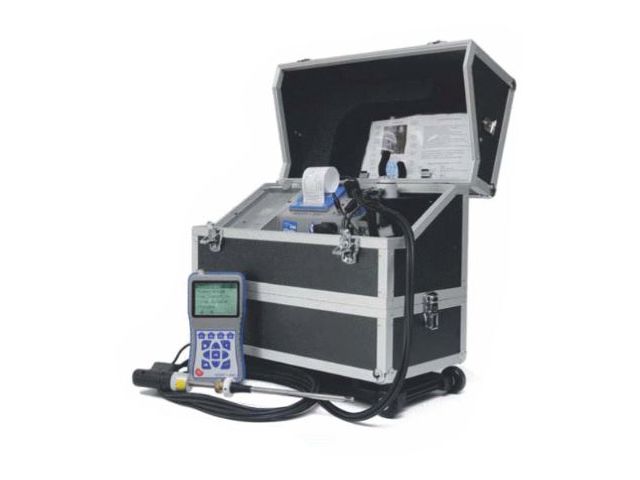

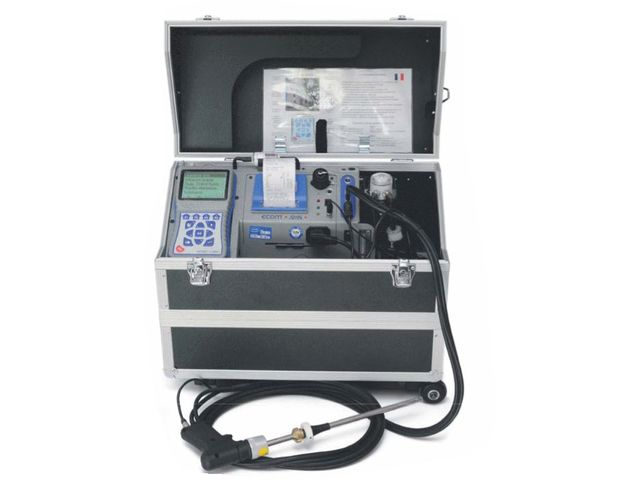

This analyzer can measure O2, CO, NO, NO2 and SO2 continuously for several hours on boilers, engines, turbines. The Ecom J2KN uses the principle of electrochemical cells. It incorporates a pressure sensor and up to 6 electrochemical cells. The radio control box offers a range of 50 m. It has a heated line and probe for NO2 measurements, and a H2-compensated CO cell. CO2 is calculated according to the type of fuel.

Characteristics :
• Measurement ranges: 0-21% O2, 0-4000 ppm CO compensated H2, 0-5000 ppm NO, 0-1000 ppm NO2, 0-5000 ppm SO2
• Units:%, ppm, mg / m3
• Storage of measurements: yes
• Detection thresholds: 1 ppm CO, 0.05% O2, 1 ppm CO, 1ppm NO2, 1 ppm SO2
• Internal pump: yes
• PC communication interface: yes
• Software: yes
• Packaged weight: 15 kg
• Number of packages: 1

Key points :
• Complies with the decrees on the compulsory control of boiler installations from 4 to 400 kW and from 400KW to 20 MW
• Heated internal suction circuit to prevent condensation
• Automatic measurement point search with trend display
