Polymer Cladded Fibre as duplex fibre cable | HITRONIC PCF DUPLEX FRNC-PUR indoor

Polymer Cladded Fibre as duplex fibre cable | HITRONIC PCF DUPLEX FRNC-PUR indoor - LAPP FRANCE

Polymer Cladded Fibre as duplex fibre cable | HITRONIC PCF DUPLEX FRNC-PUR indoor - Fibre optical cable

Polymer Cladded Fibre as duplex fibre cable | HITRONIC PCF DUPLEX FRNC-PUR indoor - produit présenté par LAPP FRANCE

Polymer Cladded Fibre as duplex fibre cable | HITRONIC PCF DUPLEX FRNC-PUR indoor

Fibre optical cable

Ask for a quote

Presentation

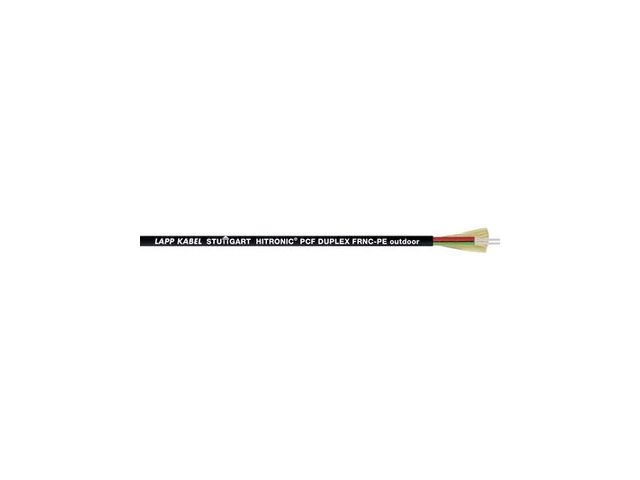

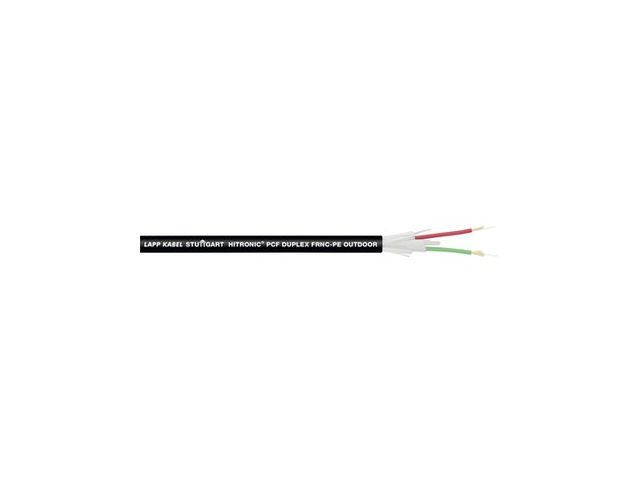

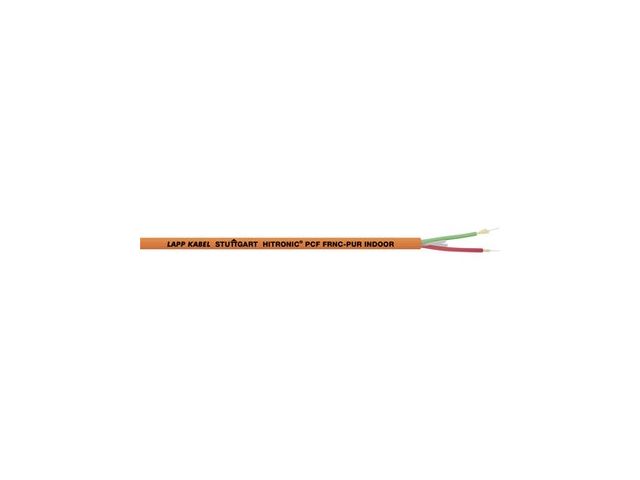

Polymer Cladded Fibre as duplex fibre cable version for indoor or outdoor use

HITRONIC® PCF DUPLEX cable for different applications, sub-cable diameter 2.9 mm, cable colour black for outdoor A-VQ(ZN)HB2Y 2K200/230; orange for indoor J-V(ZN)H11Y

For direct connector assembly

Benefits

Transmission lengths up to 500 m
Suitable for direct connector assembly
Good resistance to oil, petrol, acids and alkalis
High mechanical strength
EMC protection

Application range

For data transmission in field bus systems, such as PROFIBUS, INTERBUS etc.
Industrial environments

Product features

Possible transmission wavelengths:
650 nm and 850 nm
Complies with requirements for all BUS systems
Halogen-free outer sheath

Product Make-up

Colour-coded, tight-buffered PCF sub-cable with FRNC sheath (2.9mm)
Aramid yarns as strain relief
PUR outer sheath (indoor);
PE outer sheath (outdoor)
Colour: orange (indoor); black (outdoor)

OTHER PRODUCTS FIBRE OPTICAL CABLE FROM LAPP FRANCE

Fibre optical cables | HITRONIC TORSION 2G 50/125 OM3

Ask for a quote

Outdoor self-supporting aerial cable | HITRONIC HQA-Plus3200 6x2E 9/125 OS2

Ask for a quote

Safety cable with central loose tube | HITRONIC FIRE 4G 50/125 OM3

Ask for a quote

Outdoor cable with corrugated steel tape | HITRONIC HQW3000 4G 50/125 OM3

Ask for a quote

Outdoor cable with corrugated steel tape | HITRONIC HQW-Plus3000 4G 50/125 OM3

Ask for a quote

Polymer optical fibre as duplex fibre cable | HITRONIC POF DUPLEX FD PNC PA-PUR

Ask for a quote

Check out all the products from fibre optical cable from LAPP FRANCE

INTERNET USERS ALSO CONSULTED ON THE CATEGORY FIBRE OPTICAL CABLE

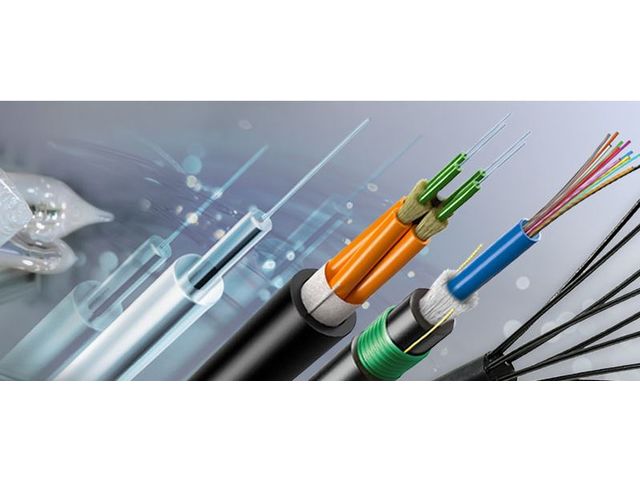

Fiber : VIS-NIR (500 - 2400 nm)

Ask for a quote

Fiber : MIR and FIR

Ask for a quote

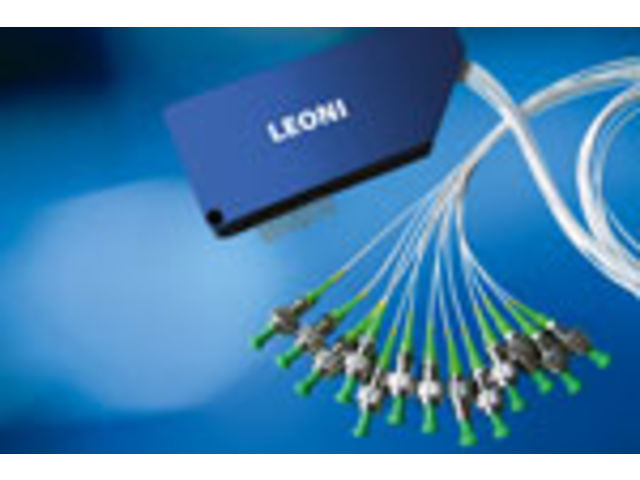

Fiber Optical Switches single-/multimode

Ask for a quote

Optical fiber manufacturer - SFP modules

Ask for a quote

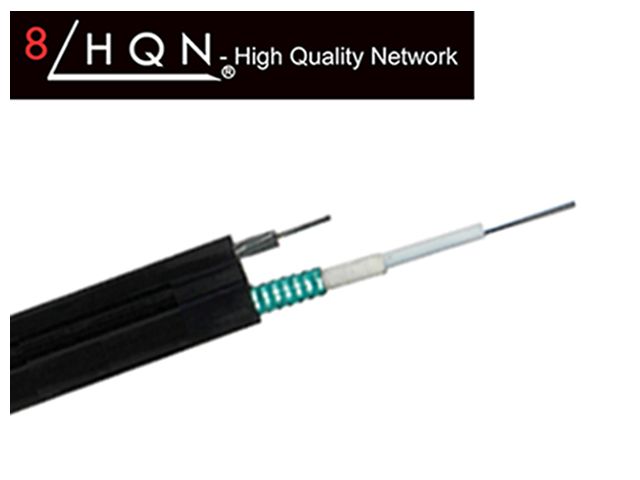

Optical fiber cable GYXTC8S
