Pneumatic push-in fittings - Technopolymer Series 2800

Instant pneumatic fitting

Maximum output and best bag quality. The continuous motion Form Fill and Seal machine BVC is designed for maximum output performance. The machine is equipped with the Sense&Seal product detection...

“ ✔ Lightweight ✔ Practical ✔ Economical ”

Ask for a quote

Presentation

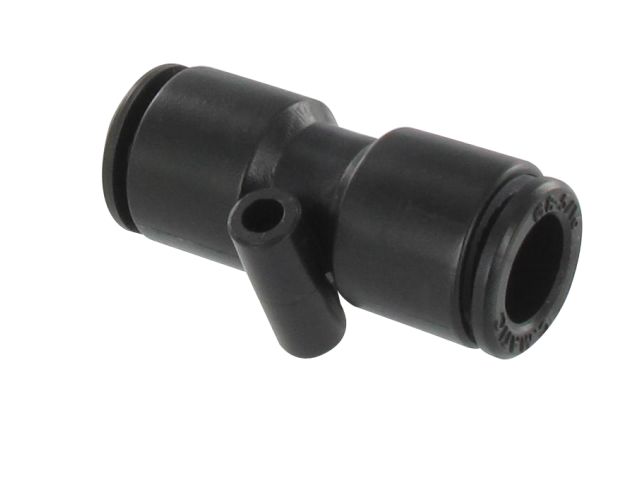

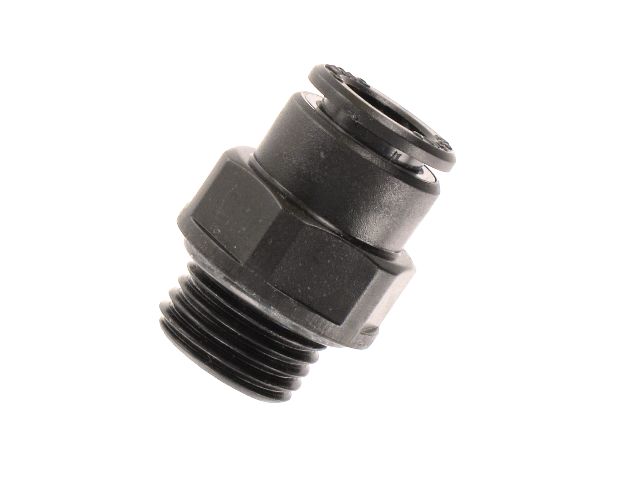

The 2800 series push-in fittings are designed to operate with compressed air or vacuum between -99 KPa and 16 bar. Made of technopolymer, these couplings are resistant to a working temperature of -20°C to +70°C.

The 2800 push-in fittings have a POM acetal resin body and plunger, an AISI 301 stainless steel clamp, a nickel-plated brass threaded base and a thread available in two versions: conical BSP teflon-coated or cylindrical BSP with mounted NBR seal.

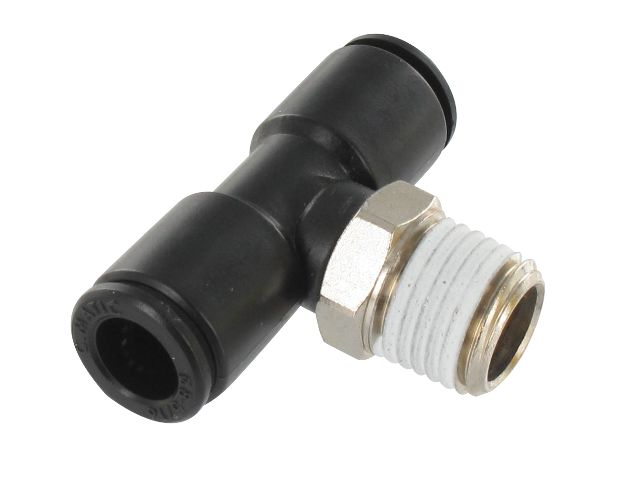

There are also installation fittings (swivel and non-swivel), junction fittings, banjo fittings, as well as snap-on accessories and terminal blocks.

https://www.senga.fr/en/products-e-shop

Technical features

Vacuum resistance: - 99 KPa Working pressure: up to 16 bar Working temperature: between -20 °C and +70 °C Seals: oil resistant NBR Materials: stainless steel - AISI 301; brass - nickel-plated; POM
