Presentation

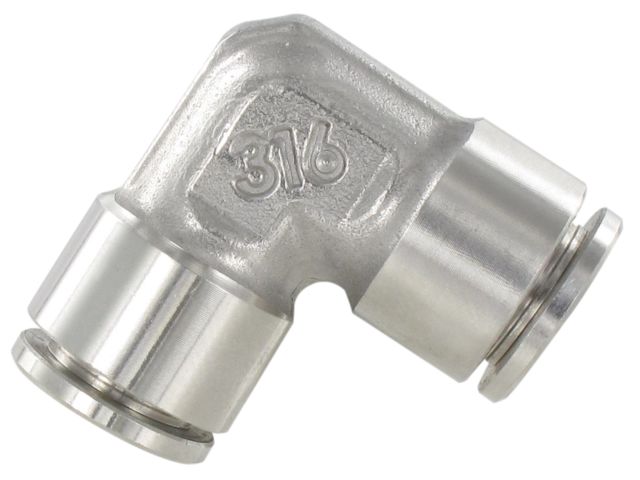

The 5950 miniature series of push-in fittings are designed to fit into tight spaces in the chemical and food industries. They feature a maximum working pressure of 18 bar and a vacuum resistance of -0.99 bar.

With stainless steel components (AISI 316 L, 301 and 302) and FKM seals, the 5950 push-in fittings can operate in a temperature range of -20°C to +150°C.

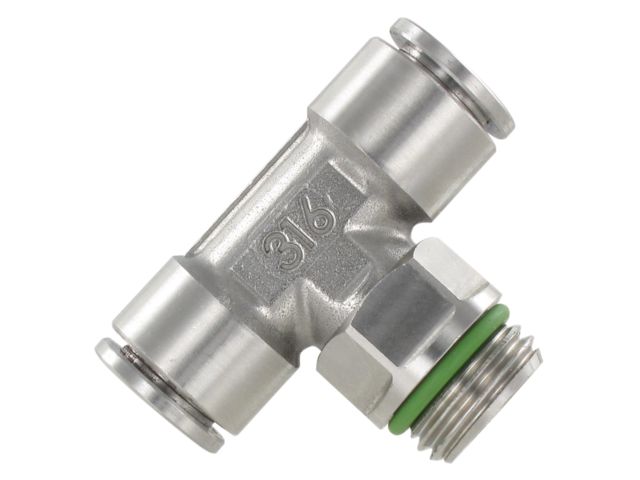

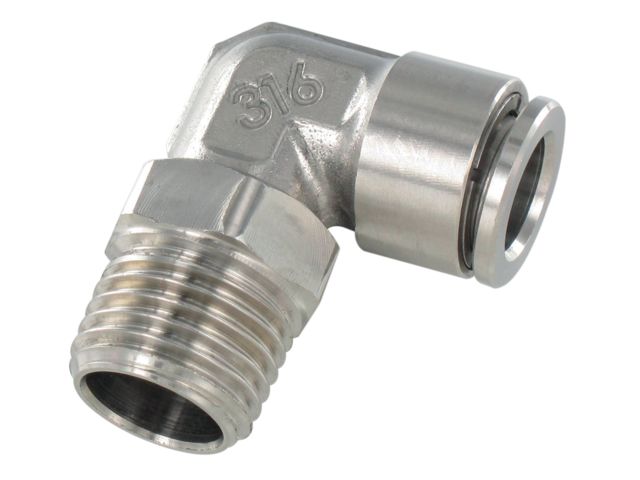

These push-in fittings are also available in swivel models. The threads are either BSP tapered or BSP cylindrical with FKM seal fitted.

The patented EASY O-ring sealing system ensures minimum space requirement for the hex key and guarantees safe assembly on imperfect threaded seats with :
1: large thread entry chamfer
2: small thread entry chamfer
3: thread on curved surfaces
4: thread not perpendicular to the seating surface

https://www.senga.fr/en/products-e-shop

Technical features

Vacuum resistance : -0.99 bar Working temperature: between -20°C and +150°C Working pressure: between -0.99 bar and 18 bar Materials: steel AISI 316 L, 301, 302 Seals : FKM Threads: BSP cylindrical with Viton seal fitted or BSP tapered
