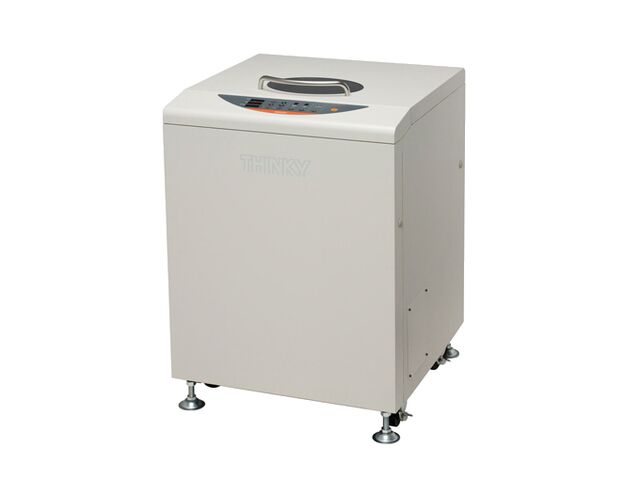

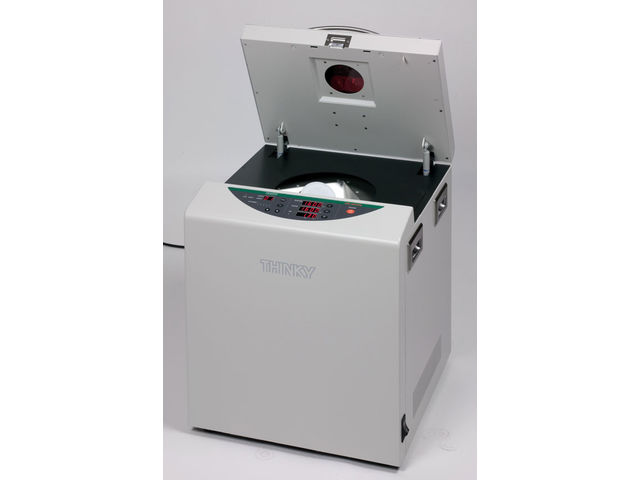

Planetary Mixer ARE 400 Twin Thinky

Planetary Mixer ARE 400 Twin Thinky - POLY DISPENSING SYSTEMS

Planetary Mixer ARE 400 Twin Thinky - Stirrers

Planetary Mixer ARE 400 Twin Thinky - produit présenté par POLY DISPENSING SYSTEMS

Planetary Mixer ARE 400 Twin Thinky

Stirrers

“ - Rotation and revolution independent variable mechanism mounted - Twin system, maximum capacity 250ml / 400g x 2 - Mixing capacity can mix high viscosity material such as viscous grease with viscosity 4000 Pa s - Effective in setting recipes for materials that do not like temperature-rise - Can use a sensor unit that can detect temperature of materials being mixed in real time (optional) - Through external PC connections, can display recipe settings, rotations during operation, and material temperature in real time (USB type B standard equipement) ”

Ask for a quote

Presentation

The built in mechanism can vary the ratio of rotation, while the twin system is newly developed. Mixes and deaerates a maximum 500ml / 800g of material (gross).
This machine can set and reproduce optimal recipes for materials whose temperature is hard to control because it can detect material temperatures in containers in real time during operation with the combined use of the newly developed sensor unit incorporating noncontact sensors (optional).
A PC connector (USB Type B) is installed on the back of the unit as standard equipment, achieving parameter setting, rotations.

Technical features

Max. processing volume 300 ml x 2 Dimensions H560 x L460 x P480 Max. weight ( net ) 250 g x 2 Max. weight ( brut ) 310 g x 2 Deaeration type Atmospheric pressure Mixing function 660 G RPM Adjustable
