Pin Driving Chuck | MODEL SPD

Tool holder

Ask for a quote Receive Documentation Contact the supplier

Low cost alternative for low insertion force.

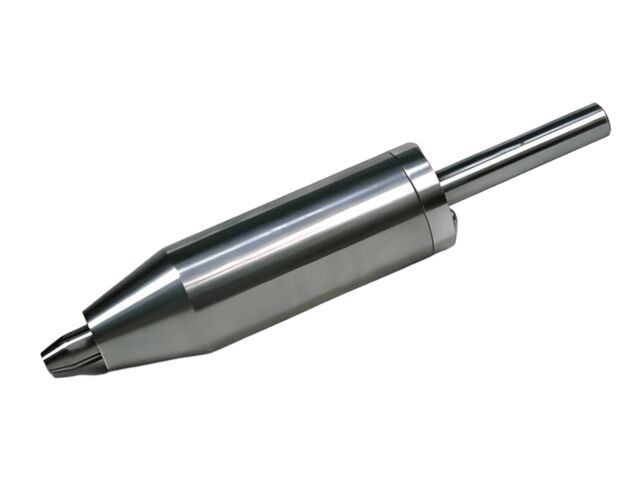

This  light  duty,  stainless  steel  pin  driving  chuck  is  designed  for  use  with  SPIROL’s  Model  PM  Manual  Pin  Inserter.  It  may  also  be used in a drill press or arbor press with an adapter. An  internal  compression  spring  acts  on  the  outer flanges of the jaws to provide retention force  and  hold  the  pin  securely  prior  to  and  during installation. This feature eliminates the difficulty with handling small diameter or short pins.

The tool is also designed to provide the operator  with  good  visibility  for  aligning  the  pin with the hole in the work piece facilitating trouble-free installation. To  use  this  tool,  install  the  Model  SPD  into  the  press  adapter.  Insert  the  pin  into  the  SPD  jaws,  and  align  the  pin  with  the  hole in  the  assembly.

Pull  down  the  press  lever.  Downward  movement  of  the  press  starts  insertion  of  the  pin  into  the  hole.    When  the  jaws of the Model SPD contact the assembly surface,    an    internal    punch    continues    downward  to  complete  the  insertion  of  the  pin to the desired depth - below flush, flush or above  flush.

When  used  in  conjunction  with SPIROL's Model PM Pin Inserter, a stop can be set for specific and repeatable installation depths.
