optoCONTROL 2520 - Optical micrometer with HTML5 user interface Brand: MICRO-EPSILON

Micrometers

“ Advantages - Various models for different applications - Laser- or LED light source - Extremely compact construction - Very accurate measurements - High speed measurements - Perfect detection of edges, gaps, positions and diameters of round objects ”

Ask for a quote

Presentation

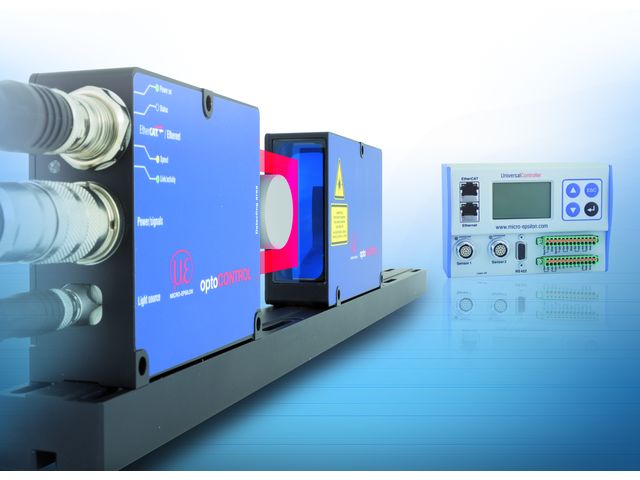

The optoCONTROL 2520 compact laser micrometer with integrated controller stands out due to its high precision, 46mm measuring range and a maximum transmitter/receiver distance of up to 2m. The unique web browser interface for configuration and set up does not require the installation of any additional software. The optoCONTROL 2520 now runs on HTML5. The cross-device sensor operates reliably which enables the user to run it from a smartphone. A measurement chart displays limit values. In addition, the system provides various averaging and filter methods, as well as statistics features. Up to 8 segments can be measured and output simultaneously. The user can switch the display from Metric (mm) to Imperial (inch) measurement units.

The optoCONTROL 2520 is used for counting and measurement of IC pins and gaps. The smallest object diameter detectable is 0.5mm. Data output is performed via RS422, Ethernet or EtherCAT interfaces. A video signal diagram is used for easy alignment and set up of measurements.

Technical features

Measurement range: 46 mm Linearity: max. 12 µm Resolution: max. 1 µm Compact design with integrated controller Variety of measurement distances up to 2 m Laser class 1M Set up and configuration via web interface

Download the complete technical features
