Optical Micrometers: optoCONTROL 2500 Brand: MICRO-EPSILON

Micrometers

“ Advantages - Various models for different applications - Laser- or LED light source - Extremely compact construction - Very accurate measurements - High speed measurements - Perfect detection of edges, gaps, positions and diameters of round objects ”

Ask for a quote

Presentation

optoCONTROL 2500
High resolution micrometer (laser)
optoCONTROL 2500 is a laser-based measuring system with integrated high resolution CCD camera. The Thru-Beam micrometer measures the dimension of an object or the position of an edge by using the shadow-casting principle. The data obtained with various, selectable measuring programs is output via analogue and digital interfaces. Thanks to the high measuring rate, the outstanding accuracy and excellent resolution, the laser micrometer is ideally suited to precision measurement and inspection tasks on moving products in production lines.

System design

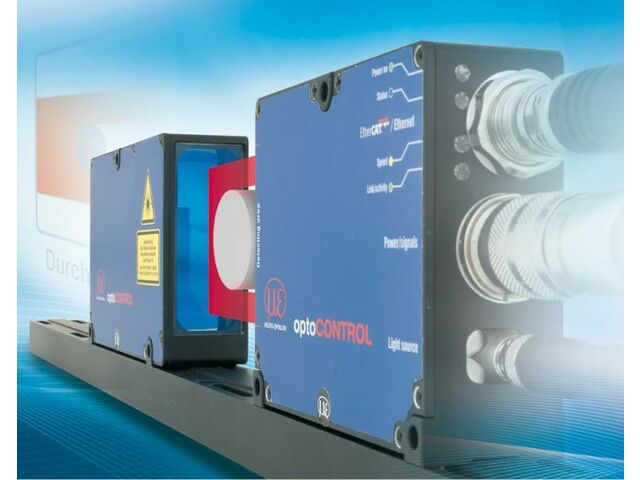

optoCONTROL 2500 consists of a sensor unit and a controller. The sensor unit comprises a laser light source (transmitter) and a CCD camera (receiver). A parallel light curtain is produced with the laser light source. The CCD array in the receiver measures the contour formed by shadow casting of the measurement object with high accuracy. The sensor unit is controlled and evaluated by an intelligent controller with graphical display for operation and display of the measured values.
