Open Paint Booth 3m x 1.80m | PAINT MODUL' DOUBLE

Open Paint Booth 3m x 1.80m | PAINT MODUL' DOUBLE - TECHNICIS FILTRATION

Open Paint Booth 3m x 1.80m | PAINT MODUL' DOUBLE - Paint booth

Open Paint Booth 3m x 1.80m | PAINT MODUL' DOUBLE - produit présenté par TECHNICIS FILTRATION

Open Paint Booth 3m x 1.80m | PAINT MODUL' DOUBLE

Paint booth

Ask for a quote

Presentation

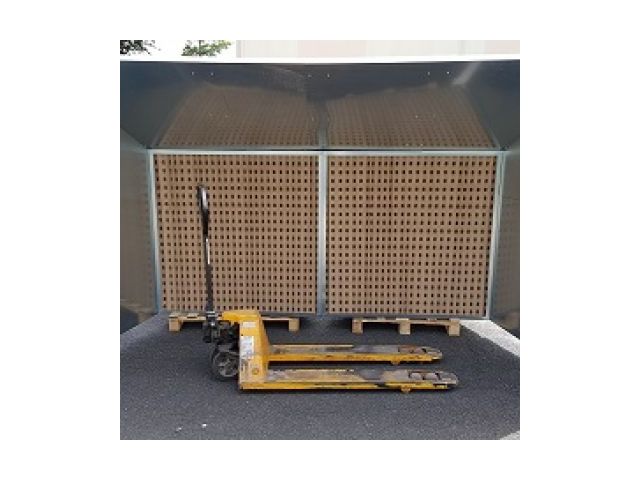

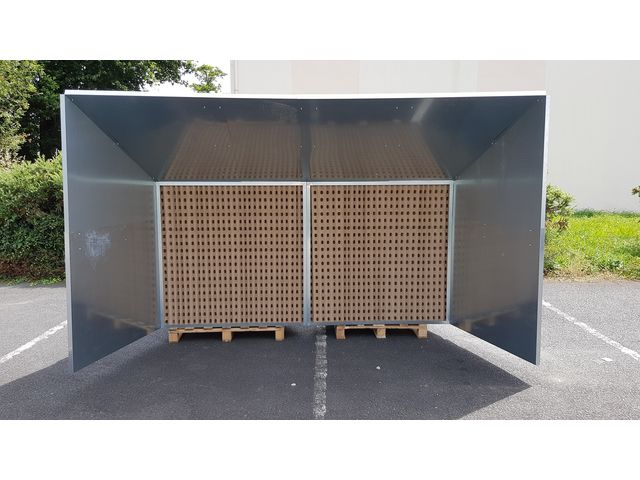

With a total usable width of 3m, the PAINT MODUL' DOUBLE open paint booth is specially designed for processing long parts.

Delivered as a kit with screws and an assembly manual, this paint/spray booth is perfectly suited for industrial environments.

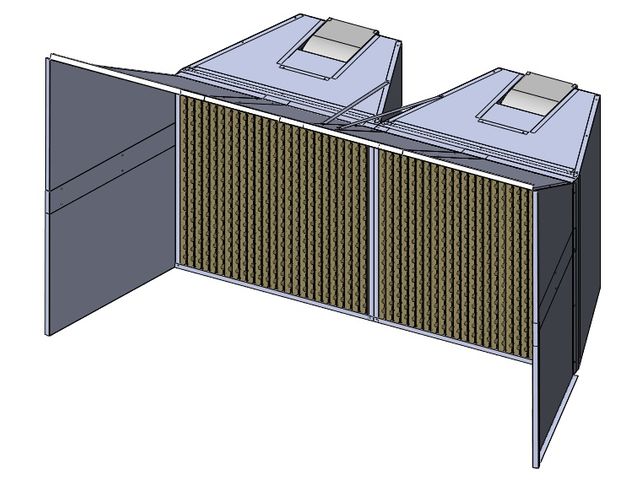

It consists of two units with a design that facilitates the integration of a pleated cardboard filter for liquid overspray filtration, two 1.1 kW 50Hz non-ATEX exhaust fans, an extension for a usable dimension of 1.80m x 3.05m, and two sets of high-capacity cardboard filters 1.25m x 1.25m for initial use.

Available options:

Kit for installing a second or third filtration stage depending on the type of overspray
Tapping + flexible duct D450mm, length up to 2.50m
Wheels for placing under the paint module
The extraction unit with its exhaust fan can be sold separately without the extension depending on your application.
