Application :

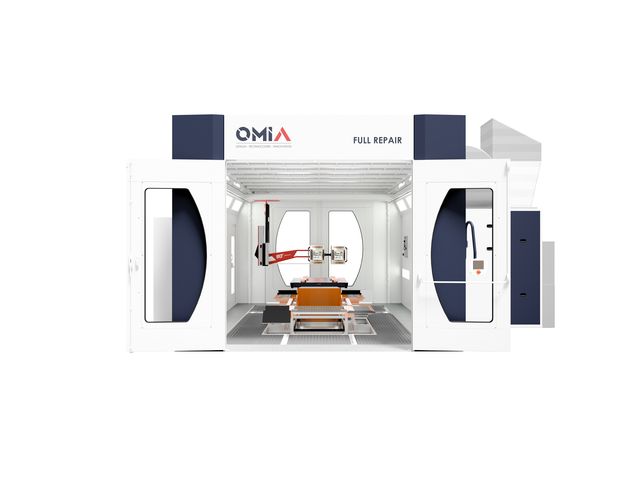

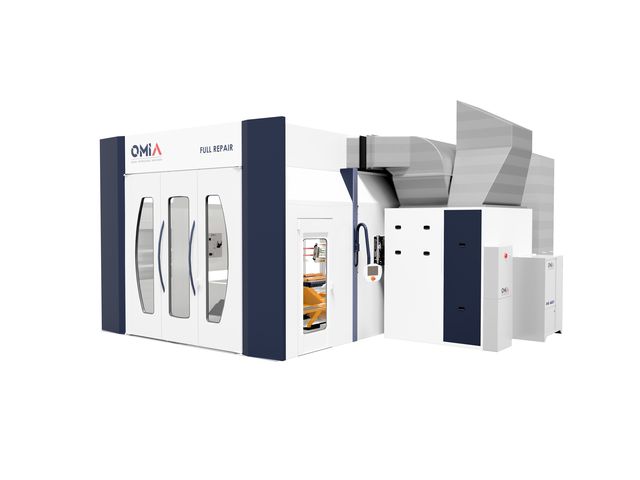

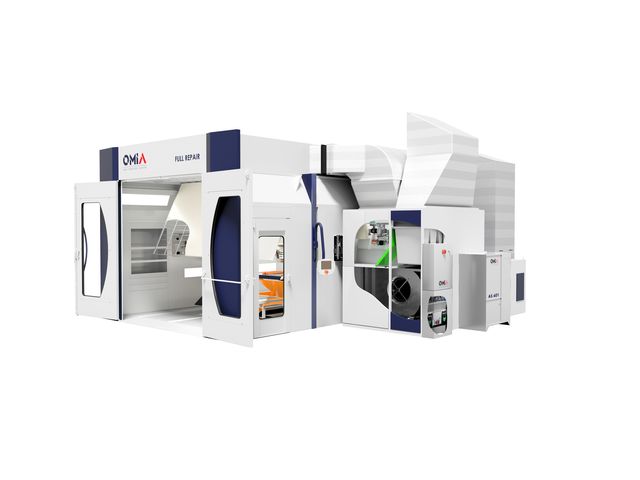

Double smart repair cell, intended for the treatment of urban shocks in automobile bodywork.
Description :
Equipped workstation able to receive 2 vehicles on which alternately preparation work (sanding, puttying, infrared drying) for spray application work (primers, paint and varnish) and drying by hot air convection is carried out.
Because of the different applications and in order to comply with the regulations, this equipment was designed and built on the technical basis of a paint booth with additional equipment for tooling and energy distribution allowing sanding, grinding and infrared drying by portal or by trolley.
The unit is therefore equipped with a single ventilation device allowing:
Preparation phase:
- The 2 zones are ventilated at half-flow.
- Painting is prohibited (switching off of the specific compressed air network for painting).
Primer or finish paint phase
- Only one of the 2 cells is then ventilated with the entire air flow from the ventilation unit.
- Infrared drying is then switched off over the entire area.
- Sanding and grinding operations are also impossible.
Drying phase:
- The 2 zones are ventilated at half-flow
- Painting is not permitted
- The 2 stations are ventilated for a drying cycle by hot air convection with recycling at 60°C.
- Infrared drying is then switched off over the entire area.
- Sanding and grinding operations are also impossible.
- Painting is not permitted.
Hot air drying is also possible (without infrared), allowing larger areas to be dried than with infrared alone.
Advantages :
- Option to dry 2 vehicles during the same drying cycle
- Operator comfort and safety
- Reduction of vehicle return times to customers
Compliance :
Machinery directive 2006/42/EC depending on equipment
