Presentation

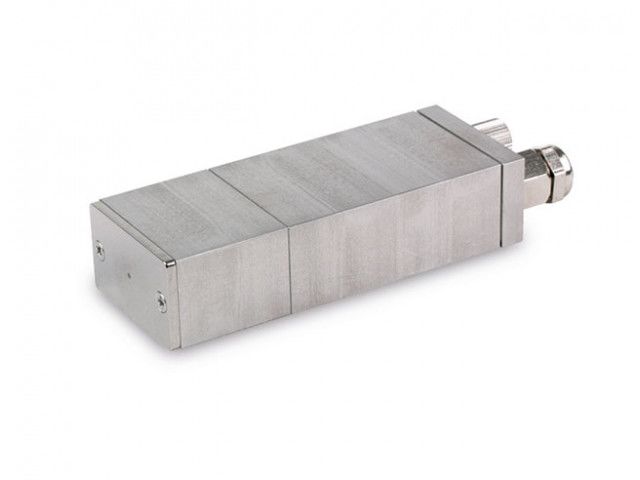

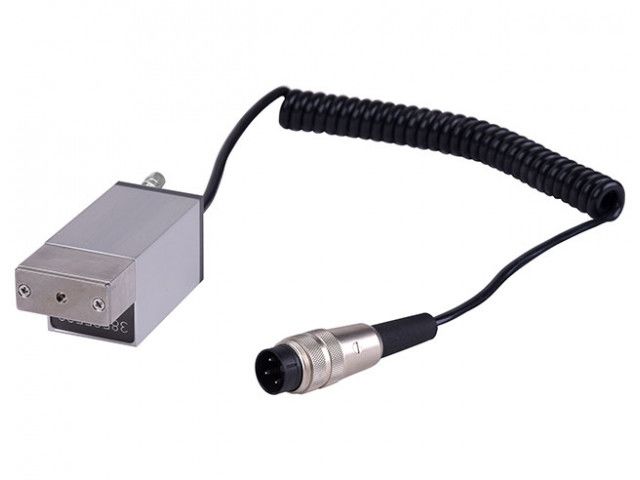

The REA JET One Dot Systems (EDS) are particularly well suited to very fine dot and line markings. The dot size is configured by selecting the nozzle size and by varying the material pressure, and the stepless setting on the controller.

Applications
- for quality assurance you can mark products with a dot to be recognized as either good or bad (use automatic camera recognition)
- colored line marking for pipes, profiles and endlessly manufactured products (e.g. extruded goods)
- applying oils, separating agents, soaps or process water
- welded seam marking in the manufacturing of metal profiles
- applying fragrances to cosmetic samples

Technical features

Media: Ink, Flux Dot: 0.8 – 2 mm Line: 0.8 – 2 mm Nozzle size: 0,08 mm - 0,35 mm Dimensions: 30 x 30 x 75 mm Weight: 220 g Spray distance: up to 10 mm Particular characteristics: Electric and pneumatic version

Download the complete technical features
