SISTO Armaturen S.A.

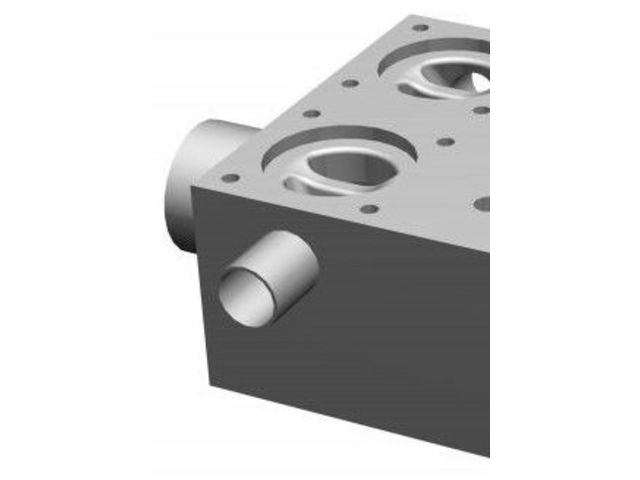

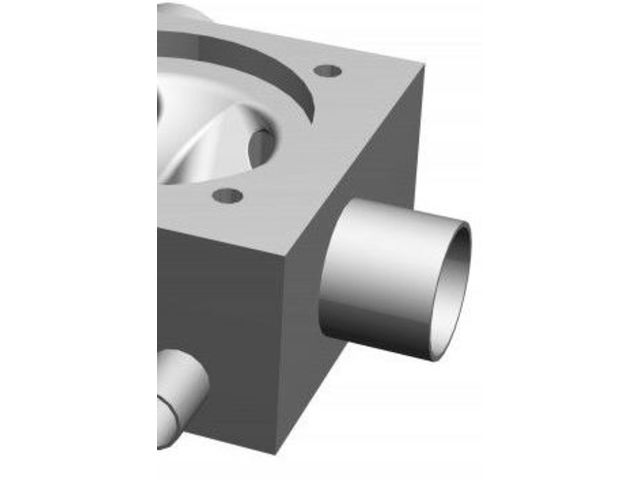

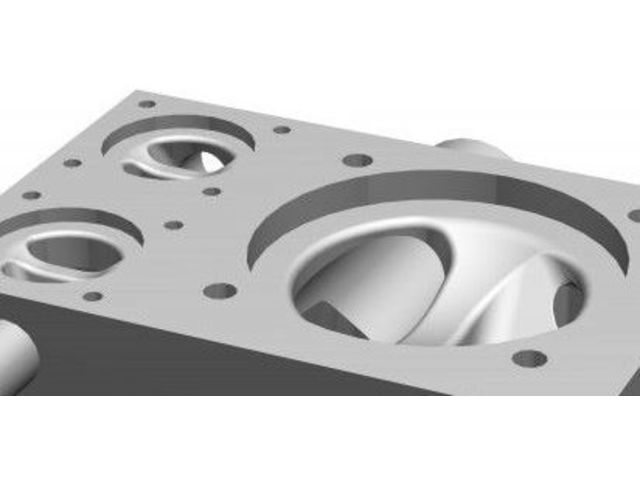

Multi-Port Valve, forged body, PN16 : SISTO-CM601

Membrane valves

In use for decades, has proven itself thousands of times. For light to heavy commercial vehicles. Can simply be switched on while in motion! Chain bundles with pre-tensioned springs lay the chain...

Ask for a quote Receive Documentation Contact the supplier

SISTO-CM601 ? Multi-port valve ? Unique design with enclosed diaphragm ? Diaphragm with spiral support starting with size MD65 ? With manual or pneumatic actuator ? Shut-off and sealing to atmosphere by diaphragm, therefore two components in contact with the fluid handled only: body and diaphragm ? Butt weld ends or clamped connection ? Body materials: forged stainless steel and other alloy materials ? Diaphragm materials: EPDM, TFM/EPDM bonded, TFM/EPDM 2-piece ? Available nominal diameters: DN6–DN100 ? Operating temperature: – 20°C to + 160°C ? Permissible operating pressure: vacuum up to 16 barg/ optional 20 barg Benefits: ? Suitable for applications up to a line pressure of 16 barg ? Increased operating reliability ? Self-draining ? No dead volume ? No contamination of fluid handled ? Suitable for CIP/SIP ? Maintenance-free ?Compact, space-saving design

Download the complete technical features
