Motorized timon 1500kg tract'n move

Electric tractors and carriers

Ask for a quote

Presentation

The optimum solution for moving loads effortlessly. Very manoeuvrable, equipped with a differential allowing to turn on the spot without effort.

Fast electrical assistance anchoring. Available in stainless steel version. Quick and easy interchangeable battery kit. French design and manufacture.

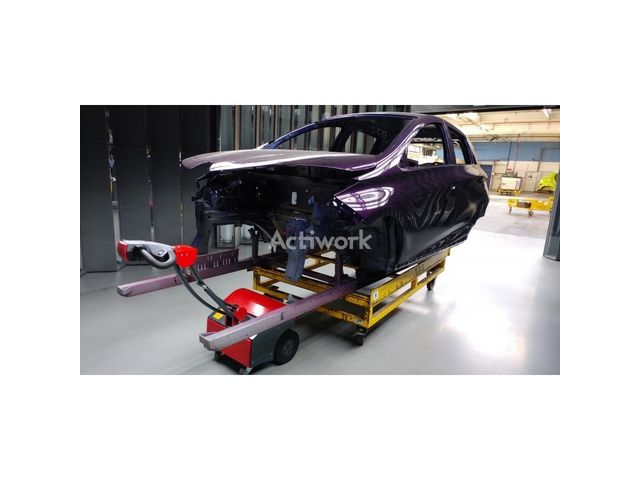

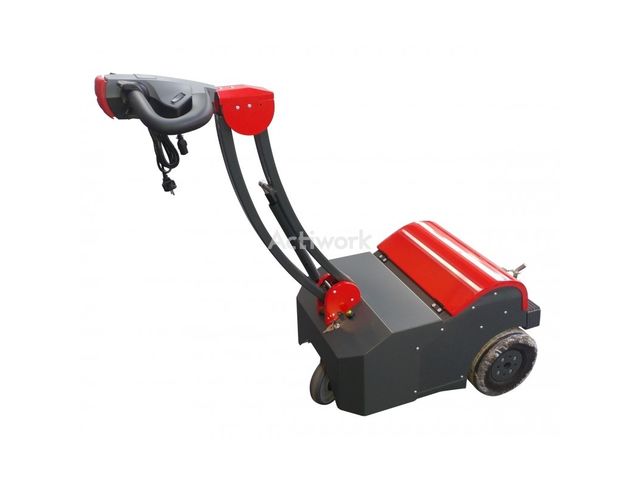

The TM15 model is compact, practical and manoeuvrable. It can tow or push chario ts up to 1500 Kg

This model is equipped with a continuously adjustable handle so that it is permanently at an ergonomic height.

The motorization is equipped with a differential allowing to turn on the spot without effort.

Technical description :

- Electric motor: 24V / 300 W with electromagnetic brake
- Electronic card with adjustment of many parameters
- Console which connects to the electronic card to modify parameters (OPTION)
- Removable battery 24V / 22 Ah / 14Kg
- External battery charger: 220 V / 24Ah
- Control for moving forward and backward on the drawbar with anti-crushing safety device
- Rubber drive wheels with differential block for excellent rotation
- Forward / reverse speed adjustment: 3/6 Km / h via the button on the drawbar
- The TM15 accepts up to 15 ° tilt from the ground
- Painted steel version
- Empty weight: 65 Kg
- 12 month warranty
- Sold without hook.

Option :

- Standard hook: CL51C001 ZC
- Interchangeable battery
