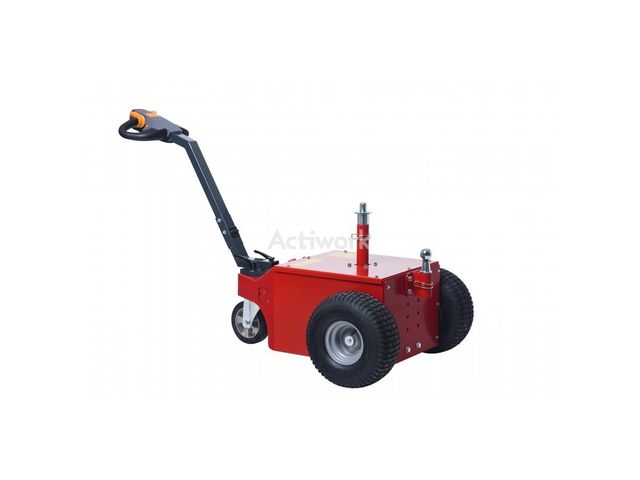

Motorized pusher tractor TM35 - capacity 3500 kg

Motorized pusher tractor TM35 - capacity 3500 kg - ACTIWORK

Motorized pusher tractor TM35 - capacity 3500 kg - Electric tractors and carriers

Motorized pusher tractor TM35 - capacity 3500 kg - produit présenté par ACTIWORK

Motorized pusher tractor TM35 - capacity 3500 kg

Electric tractors and carriers

Ask for a quote

Presentation

Power and maneuverability
• Motorized and ergonomic assistance
• Hitch, tow and push up to 3.5 tonnes effortlessly
• Easily move your trolleys and trailers over any type of ground

Assets :

The TM15 model is compact, practical and manoeuvrable. It can tow or push chario ts up to 3500 Kg
This model is equipped with a continuously adjustable handle so that it is permanently at an ergonomic height. The motorization is equipped with a differential allowing to turn on the spot without effort.

Technical description :

- Electric motor: 24V / 800 W with electromagnetic brake
- Traction torque: 2000 Newton
- Electronic card with adjustment of many parameters
- Console which connects to the electronic card to modify parameters (OPTION)
- Removable battery 24V / 55 Ah / 14Kg
- External battery charger: 220 V / 8Ah

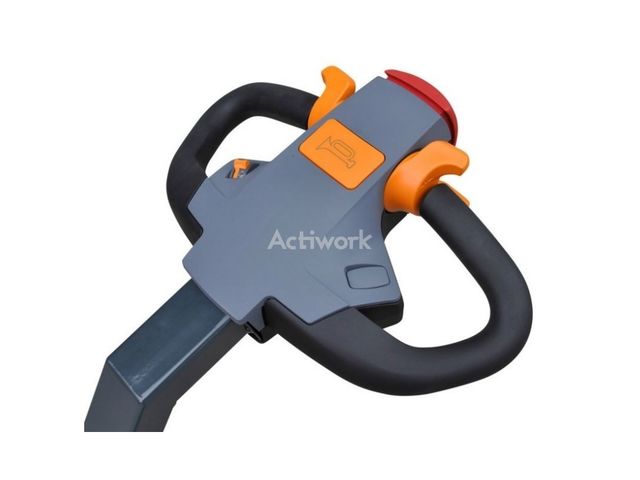

- Control for moving forward and backward on the drawbar with anti-crushing safety device

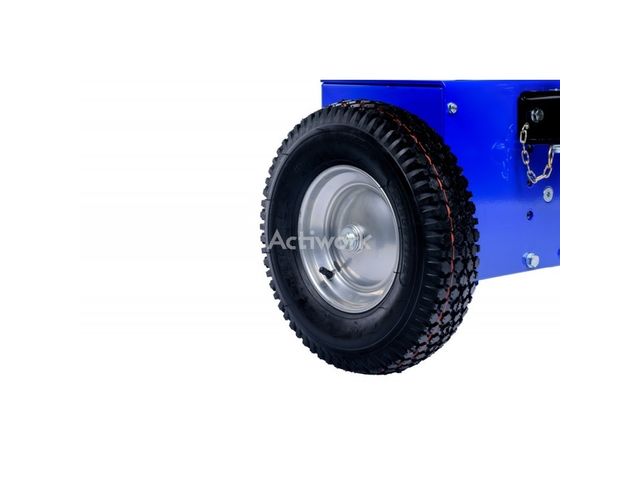

- Rubber drive wheels with differential block for excellent rotation
- Forward / reverse speed adjustment: 0 to 5 km / h via the button on the drawbar
- The TM35 accepts up to 15 ° tilt from the ground
- Painted steel version
- Empty weight: 150 Kg
- 2 year warranty except battery (s) 6 months
- Sold without hook.

Option :

- Standard hook: CL51C001 ZC
- Interchangeable battery
