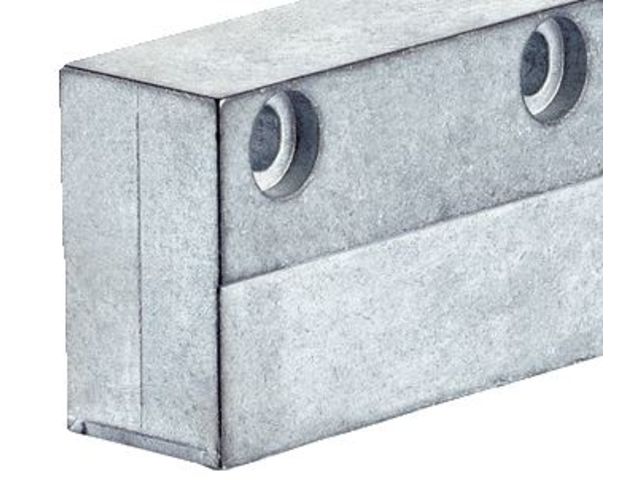

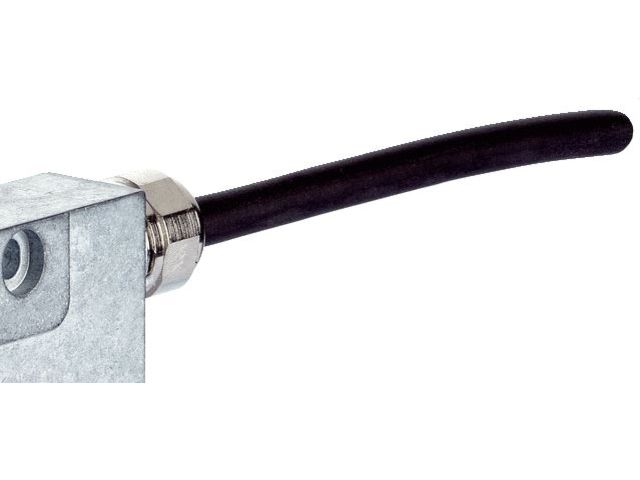

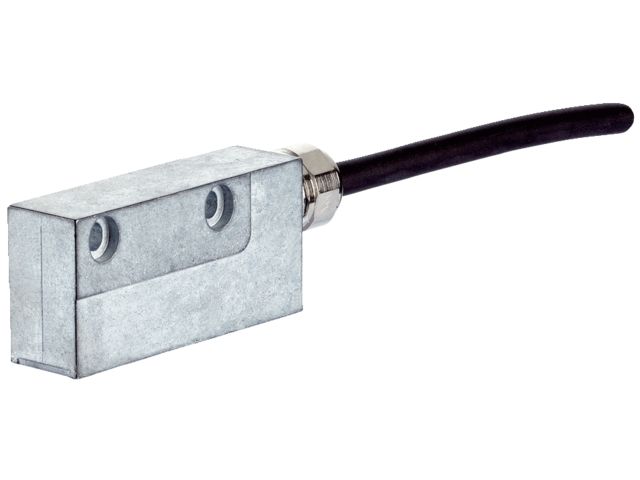

Motor feedback systems linear HIPERFACE® - TTK50-HXJ0K02

Magnetic position sensors

Ask for a quote Receive Documentation Contact the supplier

Precision, speed, dynamic, stiffness and a high level of control quality – these are the features that play an important part in high-end applications of drive technology. The TTK50 linear measuring system meets all these requirements.

It is a very compact motor feedback system with a HIPERFACE® interface. The magnetic principle of operation, the large measured lengths and the very high resolution open up a multitude of applications for absolute position determination on linear motors.

Inside, the TTK50 features the latest sensor and evaluation technology. The sensor board aligned with the measuring plane is equipped with hall sensors on two parallel tracks. Their arrangement corresponds to the division of the magnetic tape into an incremental and an absolute component.

To calculate the absolute position values during operation, the read head first records the absolute initial position when the linear motor starts. Then all other actual positions of the drive are determined via the incremental position on the magnetic track or sine/cosine signals.

At a glance

• Absolute, non-contact, wear-free length measurement system for linear motors
• Measured lengths of up to 1 m
• Suitable for high traverse speeds of up to 10 m/s
• Reliable location positioning even in the event of condensation and contamination of the magnetic tape
• Electronic type label and programming of the position value
• Absolute location positioning, no reference run
• HIPERFACE® interface
• Conforms to RoHs

Measuring length : ≤ 940 mm Supply voltage : 7 V DC ... 12 V DC Operating current : ≤ 55 mA (without load) Weight : 0.06 kg, without cable Enclosure rating : IP65, with mating connector inserted (according to IEC 60529) Operating temperature range : –30 °C ... +80 °C
Download the complete technical features
