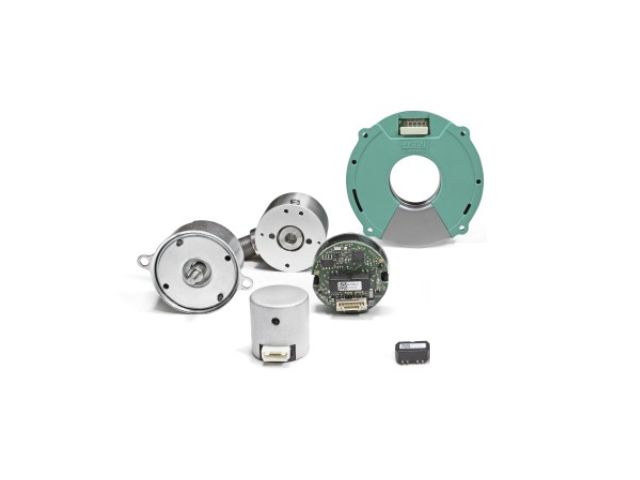

POSITAL‘s kit encoders offer a unique combination of accuracy, reliability and cost efficiency. Absolute measurement versions provide 17 bit electrical resolution and multiturn position measurements with a range of more than one million revolutions.
-
Electrical Resolution: Up to 17 Bit, Multiturn: Up to 32 Bit
-
Accuracy: 0.1°
-
Compact Size: 36 mm diameter, 24.2 mm Height
-
Operating Temperature: -40 to +105°C
-
Auto Calibration − No Complex Equipment
-
Extensive Diagnostic Coverage
-
Various Programmable Parameters
Advantages
POSITAL’s contact free measurement technology has no moving parts and is highly resistant to shock and vibration. POSITAL’s kit encoders are available with several non-proprietary electrical interfaces including BISS and SSI for absolute measurements. Additional protocols based on the RS485 interface can be implemented.
-
Absolute Multiturn & Incremental Interface
-
Electrical Interface: BiSS C, BiSS Line, SSI, RS485
-
No Battery – No Maintenance
-
No Ball Bearings & Compact Design
-
Insensitive to Dust and Moisture
-
High Shock and Vibration Resistance
Upgrade Your Existing Motion Control Application

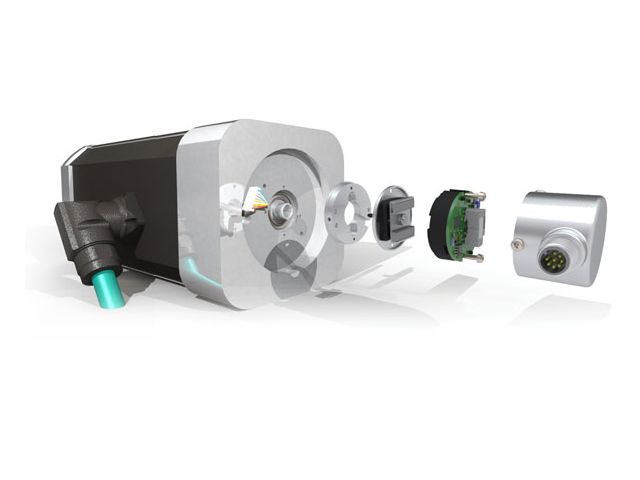

Making your transition from incremental to absolute position sensing easy, POSITAL provides a full line of versions that are mechanical drop in replacement for common US Digital and Broadcom (Avago) incremental kit models.
-
Same Footprints as E5 and HEDS-5500 Models
-
Various Hub Diameters from 4 mm to 10 mm (and 1/4 to 3/8 inch)
-

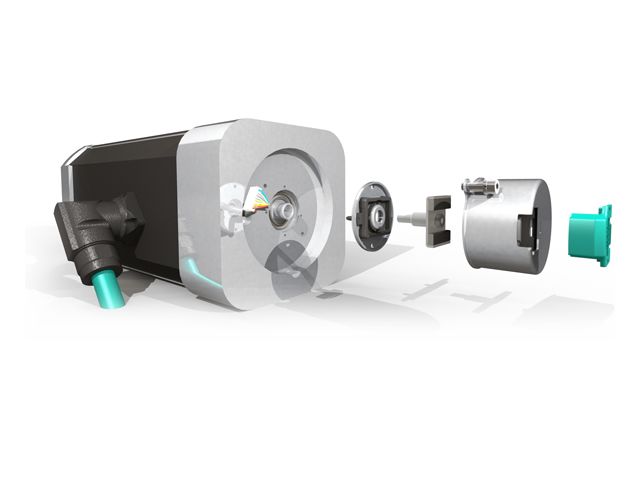

Identical Assembly Procedure - No Training Required
-
Magnetic Technology Which Is Generally More Robust Than Optical
-
Improved Connectivity via M12 Connector Additional Available
Energy Harvesting – No Battery
The energy harvesting system is based on the Wiegand effect and eliminates the need for backup batteries or complex gear systems.
Plug and Play
A built-in self-calibration capability can compensate for small sensor-to-shaft alignment errors.
