Modula Onepick

Dynamic storage

2 V-rollers Roller dimensions: Length: 685 mm - Outside Ø: 61 mm Sealed ball bearings Linear cable pulling at cable drum outlet Hot painted frame and galvanized steel roller Dimensions:...

“ Automation at the highest level with the new automated warehouse picking system the OnePick. ”

Ask for a quote

Presentation

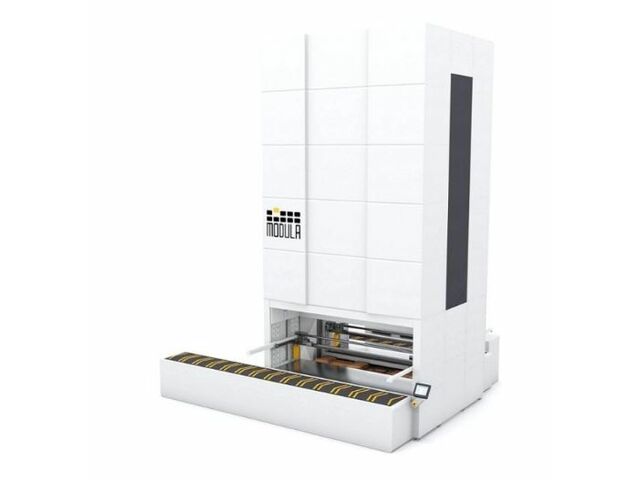

OnePick is a Modula Lift automated warehouse picking system with a special picking bay equipped with a Cartesian robot moving along 2 axes (X and Y).

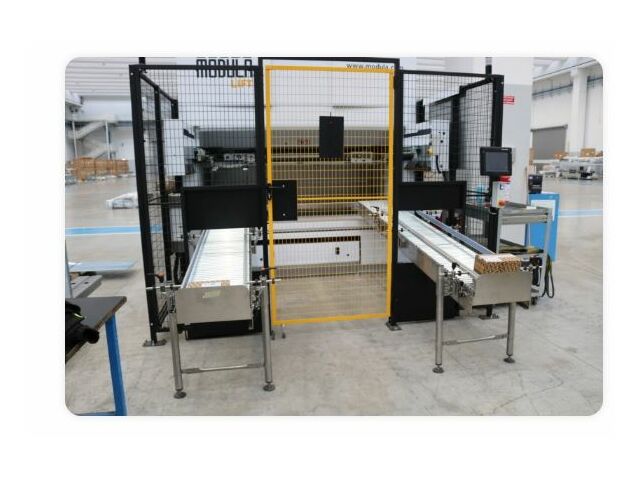

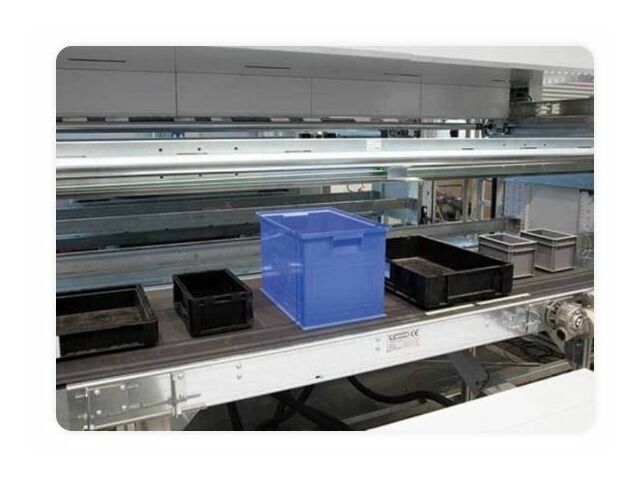

The bay is set at a predefined height so it integrates seamlessly with rollers, conveyors, belts and other systems, completely automatically. In the OnePick bay, a gripper device retrieves the box and places it in front of the bay on a surface external to the machine.

Technical Data
OnePick combined with a handling system allows installation of an automatic vertical warehouse even in areas that are difficult to access, uncomfortable or far from where the goods are needed.

OnePick's operation is based on WMS software which, amongst other things, also maps the location of the tray containers. The gripper device is guided by this mapping and retrieves the requested items autonomously.

This automated warehouse picking and this type of automatic transport system will then be able to convey the retrieved materials to another location, even if far away.

Modula OnePick warehouse picking system is available in these models:

• MA & MA-D

• MC & MC-D

• MX & MX-D

• ML & ML-D

Technical features

Maximum load unit height: 360 mm Maximum load unit weight: 20 kg (depending on the box dimensions) Option for opposed bays Dynamic tray height storage Retrofit possible on existing Modula Lifts (New Generation) tray width: from 1.900 mm to 4.100 mm Unit height: from 3.300 mm to 16.100 mm Total net payload: up to 90.000 Kg Number of bays: up to 3 OnePick, also on the same side and displaced

Usage scope

Metallurgy/Metals/Aluminium Rubber/Plastic/Glass/Wood/Paper Chemicals/Cosmetics/Herbalism/Perfumery Electric/Electronic/Computer/Software Biomedical/Pharmaceutical
