MODEL 3411 | Torque Display

FC metering valves and SB 200 are high-pressure valves. The FC and SB 200 series valves were designed specifically for products with high / medium viscosity and have a very good resistance to very...

“ This easy-to-use device powers the transducer and utilizes high speed processing to display torque, speed and mechanical power. ”

Ask for a quote

Presentation

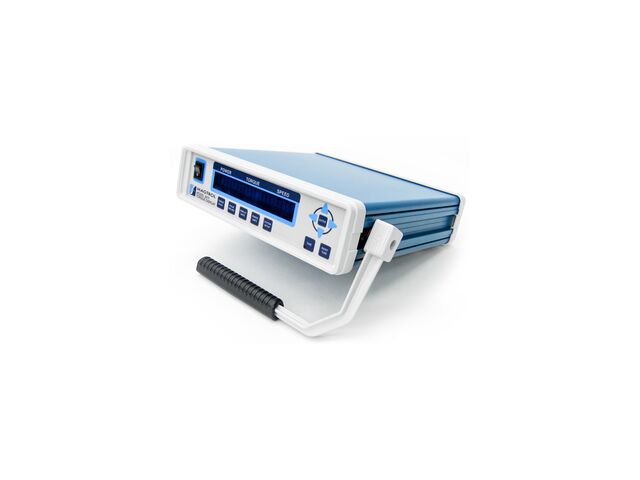

Magtrol’s Model 3411 Torque Display is designed for use with all Magtrol TM, TMHS, TMB and TF Torque Transducers. This easy-to-use device powers the transducer and utilizes high speed processing to display torque, speed and mechanical power. It includes a tare function to help offset any slight residuals caused by couplings or suspended loads. The 3411 may also be used with any torque sensors requiring 24 V DC power (500 mA max.) with ± 5 V DC torque output (± 10 V DC max.) and open collector, TTL or CMOS output for the speed signal.

Technical features

For use with all Magtrol TM / TMHS / TMB In-Line Torque Transducers and TF Torque Flange Sensors High Quality, Easy-to-Read Vacuum Fluorescent Readout: Displays torque, speed and power Addition of high resolution quadrature encoder enables low RPM applications or position measurements Selectable English, Metric and SI Torque Units Isolated USB Interface and ethernet connectivity Torque output: Analog, raw sensor output and Speed output; analog or digital, user selectable BITE: Built-In Test Equipment Overload Indication Includes Magtrol Torque 7 Software High Speed Data Acquisition: Up to 500 torque and speed points per second with time stamp

Download the complete technical features
