Mobile cleanroom workstation CleanBoy®

Clean room

Automatic inline micro-leak detection system for packages based on CO2. LEAK-MASTER® MAPMAX enables the non-destructive detection of the smallest leaks, without the costly use of helium as a trace...

“ - CleanBoy® brings purity exactly where it is needed. - easy to mount - immediately ready for use without additional installation - mini version on table, maxi version on wheels ”

Ask for a quote

Presentation

ISO Class 5 clean room conditions for every workplace in production, research and laboratory.

The CleanBoy® cleanroom workstation brings purity exactly where it is needed. The CleanBoy® is available as a stand or tabletop unit. It is easy to assemble and immediately ready for use without additional installation.

The CleanBoy® consists of a laminar flow module from the SuSi ( super silent) or Basic series and a housing made of anodised aluminium profiles. You work on the surface of the table under clean room conditions of class ISO 5. This applies to the CleanBoy® Mini (table-top unit), the CleanBoy® Maxi (floor-standing unit) and the CleanBoy® Basic (floor-standing or table-top unit).

Application examples :

Analytical: Storage of analytical samples under clean room conditions.

In mechanics, electronics, optoelectronics, medical or biological technology: assembly and storage of parts or components with high process reliability.

In the pharmaceutical, food industry or laboratories: Storage, production and packaging of components.

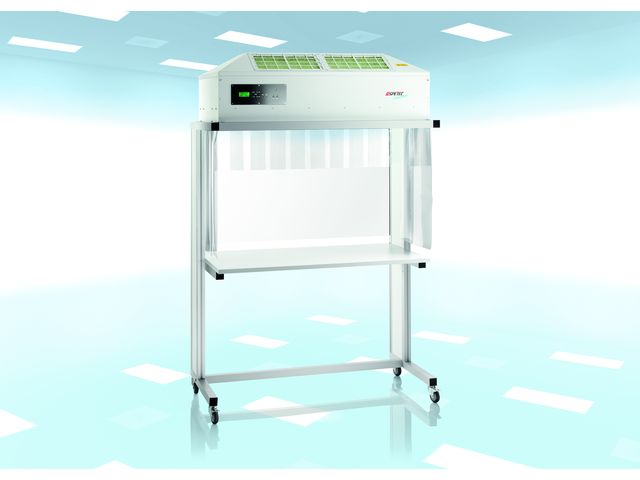

CleanBoy®Maxi

Floor-mounted (wheeled) unit with FMS filter module SuSi.

Technical features

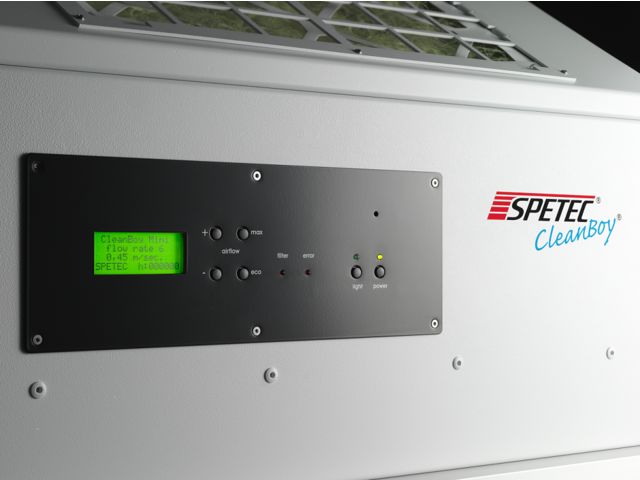

material: aluminium profiles 90x45mm or 45 x 45mm Working surface: Hard laminate plate, 25 mm Sidewalls made of a TPE-Slat-Curtain, shortened at the front for easier access Back side: Acrylic glass with a slit Incl. steering rollers with fixing brake Laminar Flow Module FMS SuSi (super silent) filter area 0,37m²/ 0,56m² / 0,75m² / 0,93m² / 1,12m 8 steps air flow setting, reproducible values Indication for fault and filter charging Exceptionally quiet electronically commutated (EC) fan

Download the complete technical features
