Presentation

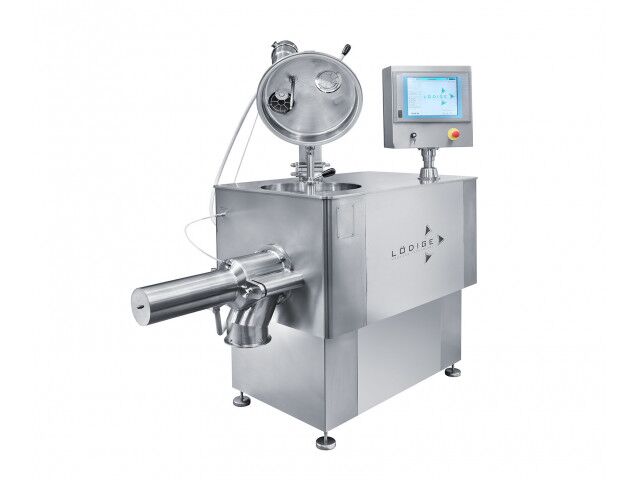

The high-shear mixer is a system for mixing, granulation of pharmaceutical powders and granulated products. Moreover, it is suitable for a wide range of cosmetics and food products. A three-bladed mixing tool rotates in a vertical, cylindrical mixing vessel close to the wall and to the bottom of the vessel. The shape and peripheral speed of the mixing tool create a vortex-like circulation of the mix.
A separately driven chopper is used for breaking up agglomerated products as well as for moistening and granulation. Liquid addition is either gravimetric or uses a pump to add liquid directly to the effective range of the chopper, so that the best possible distribution is ensured. The optional wet sieve on the discharge ensures a completely homogeneous distribution of the granulate size.
The PC/PLC-based control system to be compliant with CFR-21 Part 11. The updated user interface permits intuitive machine operation in service and automatic mode for production and cleaning operation.

Technical features

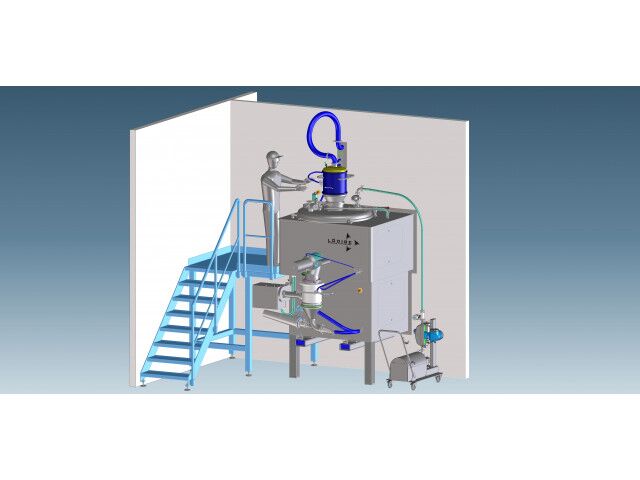

1: Jacket for heating and cooling 2: Feeding via a vacuum 3: Raisable mixing tool 4: Pressure shock resistance up to 12 bar 5: Electrical control system according to GAMP5 requirements 6: Connection to fluid bed processor
