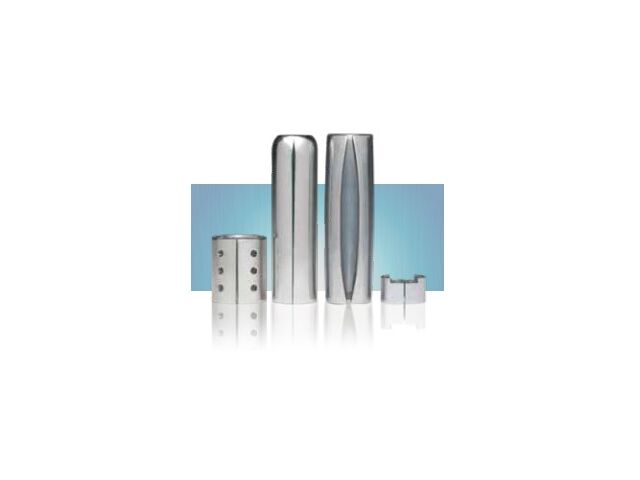

Metal Spacers

SPIROL's standard range of roll formed tubular Spacers includes both metric and inch specifications in a variety of diameters and lengths. Most standard diameters are available in two wall thickness options, standard wall and heavy wall, to accommodate specific application strength and bearing requirements.


SP100 Standard Wall Spacers are typically used in static applications without excessive external forces acting on the joint. SP100 Standard Wall Spacers are available in metric and inch in sizes ranging from 3mm to 20mm / #4 to .750" in low carbon steel with ArmorGalv® finish. SP100 standard wall Spacers are also available to order in austenitic stainless steel and aluminium.

SP150 Heavy Wall Spacers have greater compression strength and additional bearing surface. The additional bearing surface is often used to prevent witness marks or indenting when the Spacer is clamped between soft materials. SP150 Heavy Wall Spacers are available in metric and inch sizes in sizes ranging from 3mm to 16mm / #4 to .750" in low carbon steel with ArmorGalv® finish. Additional materials and finishes are available upon request.

The benefits of using SPIROL's standard tubular Spacers are as follows:

• Reduced cost and no tooling charges — particularly in low- or medium-volume applications.
• SPIROL's extensive inventory of standard tubular Spacers allows for just-in-time delivery and reduced inventories.
• No excess components at the end of a production run.
• SPIROL’s expansive standard tubular Spacer size range meets most application requirements and eliminates the need for custom-designed parts.
• The standard finish for SPIROL's Spacers is ArmorGalv®. ArmorGalv® is a zinc alloy thermal diffusion coating that offers over 1,000 hours of salt spray protection with full coating on the ID and OD of the part with no insignificant surfaces.
