CL220 Split Seam Compression Limiter

Other fixture elements

Ask for a quote Receive Documentation Contact the supplier

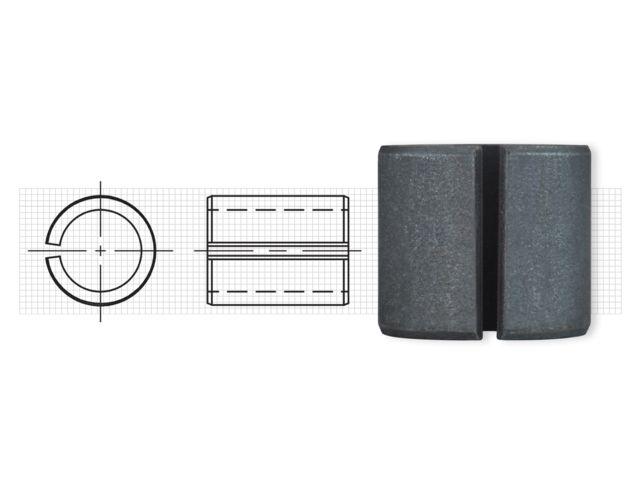

The Series CL220 Compression Limiter is produced from high carbon steel and intended for post-mould installation. The spring force generated during installation provides self-retention in the assembly. The flexible diameter accommodates wide hole tolerances, and the gap is designed such that the parts will not interlock in the free state.   Once installed, the CL220 provides a minimum clearance of 1mm around the bolt diameter to compensate for misalignment. The CL220 is the only standard Compression Limiter finished with a protective coating of ArmorGalv®, a zinc alloy thermal diffusion coating complimented with two sealers that provides 1000+ hours of salt spray protection for highly corrosive applications such as automotive, marine, mining and industrial manufacturing.  Additional benefits of ArmorGalv® include no insignificant surfaces as the entire inner diameter (ID) of the Limiter receives full coating and protection.  The CL220 is rated for use up to ISO Class 8.8 bolts.  The CL220 offers the widest range of standard diameter and length combinations to accommodate a variety of application requirements.
