Metal modular weighbridge 7 ELEM

Metal modular weighbridge 7 ELEM - PRECIA MOLEN

Metal modular weighbridge 7 ELEM - Weigh-bridges

Metal modular weighbridge 7 ELEM - produit présenté par PRECIA MOLEN

Metal modular weighbridge 7 ELEM

Weigh-bridges

Function : - half-controlled symmetrical bridge circuit with excitation voltage source only with SGP 1.5.- adjustable current controller and thus very suitable for permanently excited motors.Options :...

Ask for a quote

Presentation

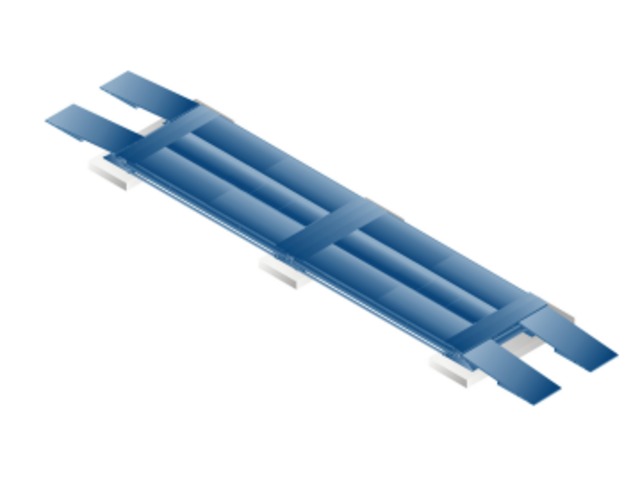

Two above-ground models:

7 ELEM AS: semi-permanent, to be sealed on concrete foundation piers
7 ELEM TP: to be put on a simplified platform or strong road system

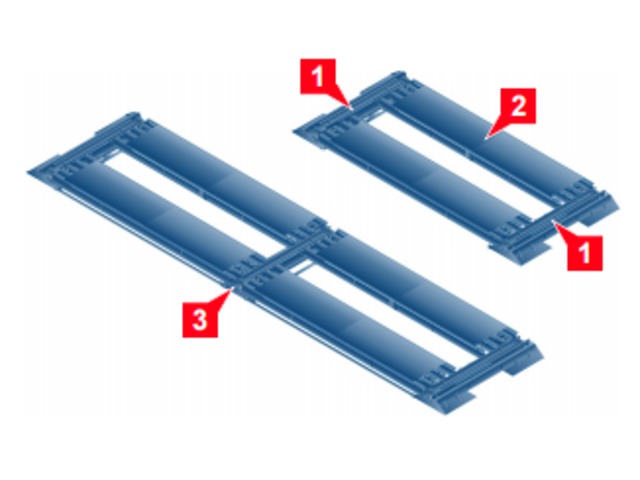

As they are modular, 7 ELEM weighbridges can be mounted on 4, 6, 8, 10 or 12 load cells.

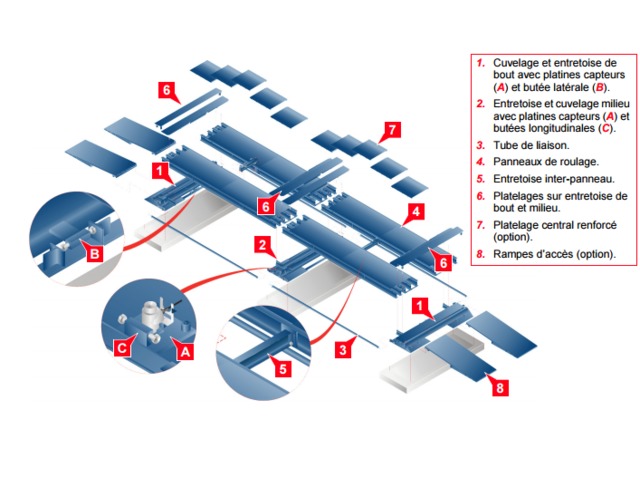

The design of 7 ELEM weighbridges gives perfect accessibility to the load cells and makes cleaning and maintenance operations easier thanks to the removable central platform plates.

7 ELEM reduces civil engineering costs at their lowest.

Being very low (29 cm for AS model, 31 cm for TP model), it enables to use very short access ramps.

Transferable on only one lorry.

Easy and quick mounting.

OPTIONS

Metal header for 7 ELEM AS
Metal access ramps for 7 ELEM TP
Available standard dimensions: 8-12-13-14-16-18 m
