SYSTEAL

Metal Hinge for 8 mm slot 30x30 profile

Assembly systems and components

Ask for a quote Receive Documentation Contact the supplier

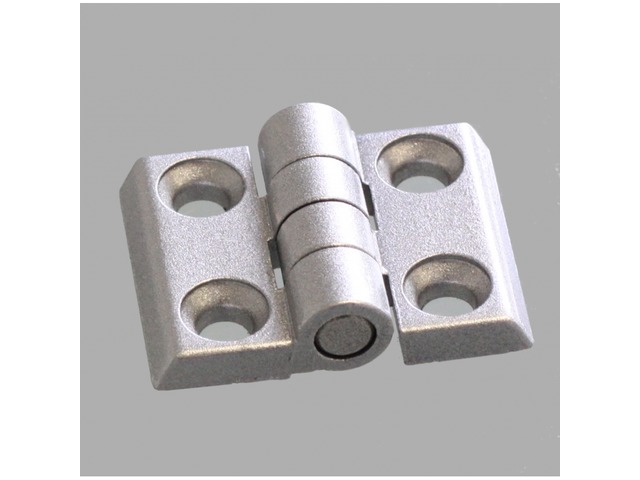

Metal Hinge for 8 mm slot 30x30 profile

No fittings

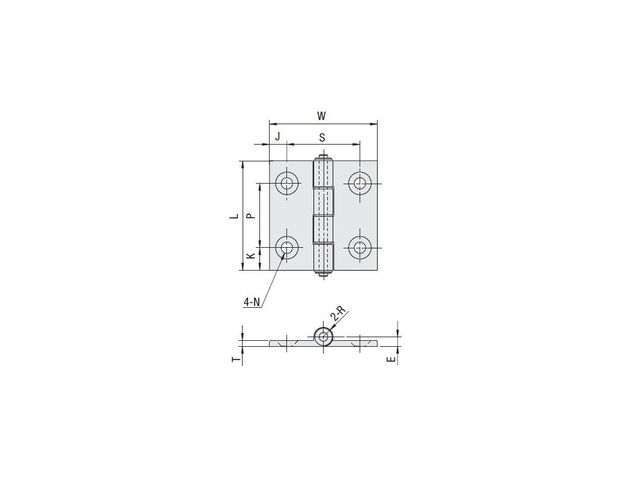

Dimensions in mm:

L=40

W=51

P=23.5

S=31

N=7

T=6.2

Material : aluminium alloy

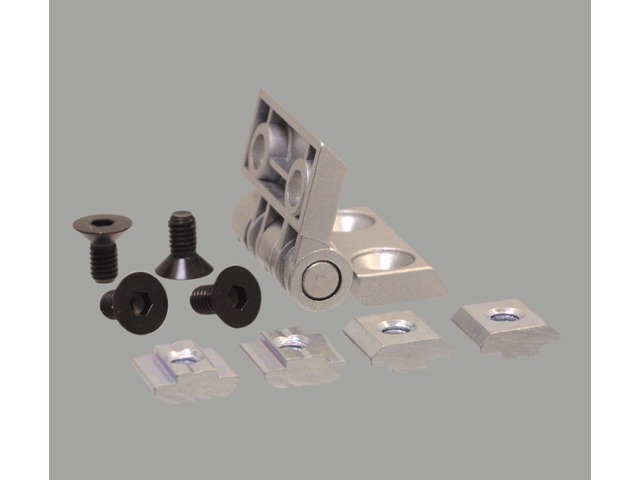

Optionnal fittings :

- 4 M6 nuts for 8 mm slot

- 4 M6 Flat Head hex Screws for 8 mm slot (note : unlike the picture, the screws are black)
