Presentation

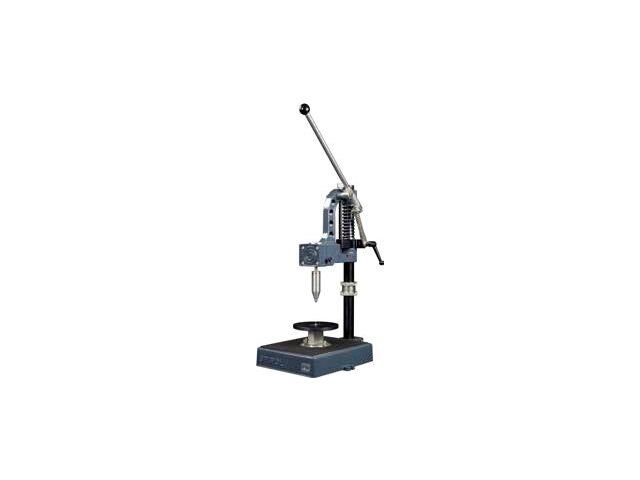

This exceptionally versatile tool is ideally suited to all levels of production: from a single unit for prototype assembly, to multiple units on an assembly line. The Model PM easily accommodates quick change-overs. The part holding device (fixture) is simply replaced from the base of the machine. The pin diameter is easily changed, positive pin depth easily adjusted, and part size variation easily accommodated. The use of high-tech shafting and bearings results in smooth operation, precise positioning, repeatability, and durability

Design Features/Benefits:

Easy:
- Simple to operate and easily adjustable

Accurate:
- Base plate is pre-drilled for simple and precise fixture location

Reliable:
- Post mount style frame is sturdy, lightweight and portable

Versatile:

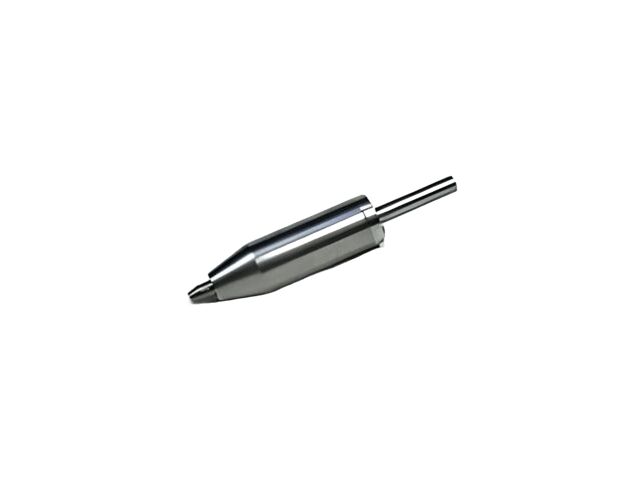

- Installs pins ranging in diameter from 0.8 mm to 4 mm, and 1/32” to 5/32” unified
- Easy tooling changeover to accommodate a variety of applications

Capacities:
- 200 lbs. maximum insertion force
- Vertical adjustment: 0-178 mm (7”)
- Fixed throat dimension: 185 mm (7.5”) - Stroke: 76 mm (3”)
