Machining center for hard metal - Forest-Liné FLEXIAX

Vertical machining center

“ Especially designed for complex parts of aircraft structure. Many configurations: fixed pallet, semi-automatic or automatic change Standalone with Automated Pallet System Optimized process: thermal compensation, power adaptive control Safety & Protection: full enclosure, and ergonomic Flat foundations (simplified civil engineering) ”

Ask for a quote

Presentation

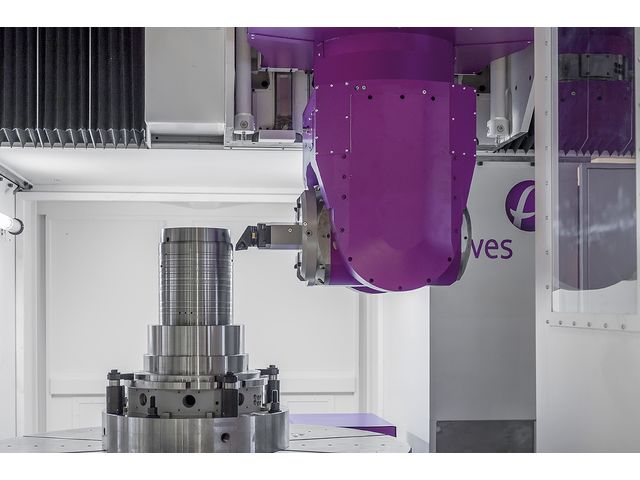

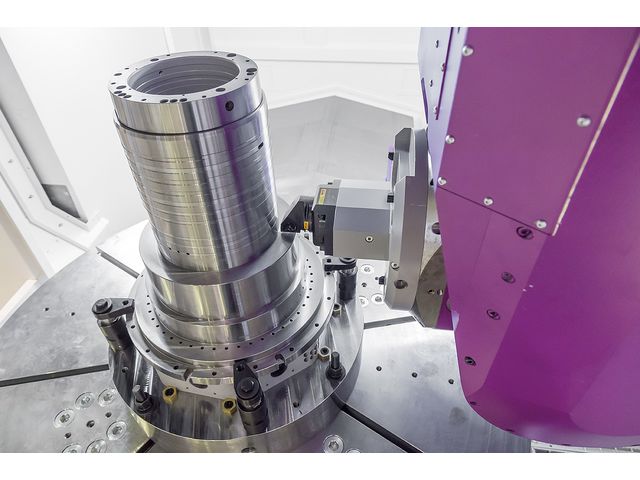

The Forest-Liné Flexiax V 5-axis machining centers were designed for roughing or finishing complex parts of aircraft structure. Their constant overhang ram provides rigidity and accuracy needed for hard materials machining.

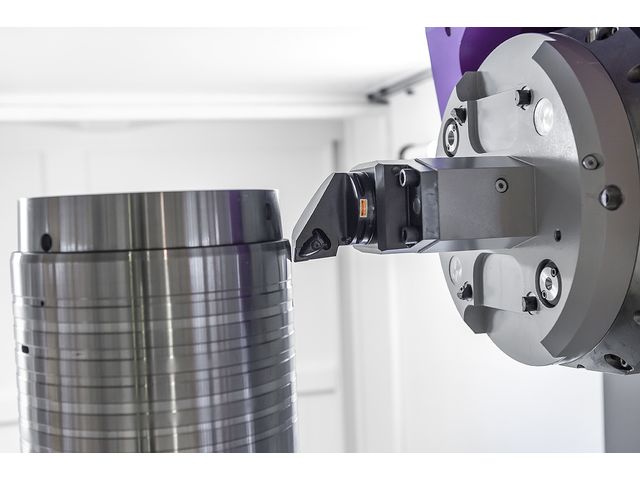

They are available with architecture as fixed gantry, and vertical spindle, including possibly facilitating machining inside parts, for important parts' templates (2,100 mm between the uprights). The development axes were brought on the spindle, the axes dynamics, the machine accuracy and on the ability to be proposed in turning / milling solution.

Technical specifications
Work area (Pallet): Ø1.6 m
Load: 5,000 kg

Strokes (X/Y/Z): 1.95 m / 2m / 1m
Strokes (C/A): N x 360° / ± 110°

Spindle: Electrospindle HS5
Maximum Power (S1): 105 kW
Maximum Torque (S1): 1,000 Nm
Speed: 10,000 rpm
