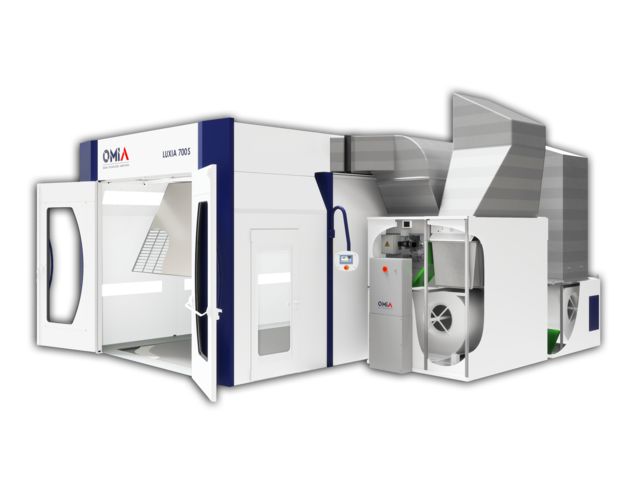

LUXIA 700 S

Application :

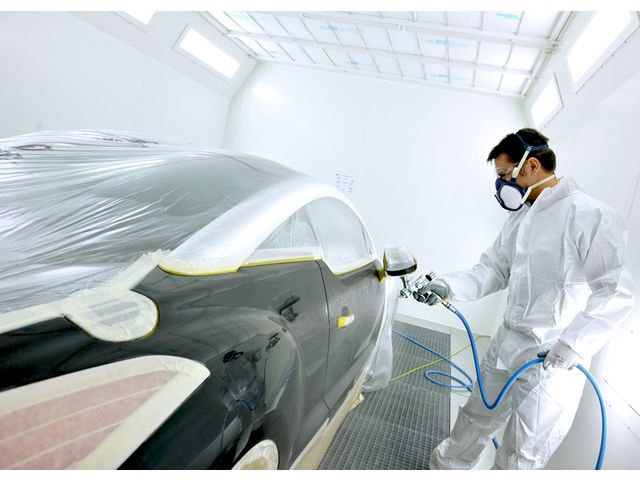

Paint booth for painting applications on light vehicles (L.V.) and utility vehicles (U.V) in automotive bodywork.

Description :

Combined booths : spraying/drying

Vertical ventilation principle with balanced overpressure and heating.


10 MAJOR INNOVATIONS

Integrated ENERGECO process : ''Matting'' phase between loyers by air recycling in closed circuit.

* 22% reduction in length of presence in the booth

* 34% reduction in operating costs

* Daily yield increased by + 1 vehicle/day

Régul’press : Regular booth pressure and level of filter fouling controlled by 5 digital sensors.

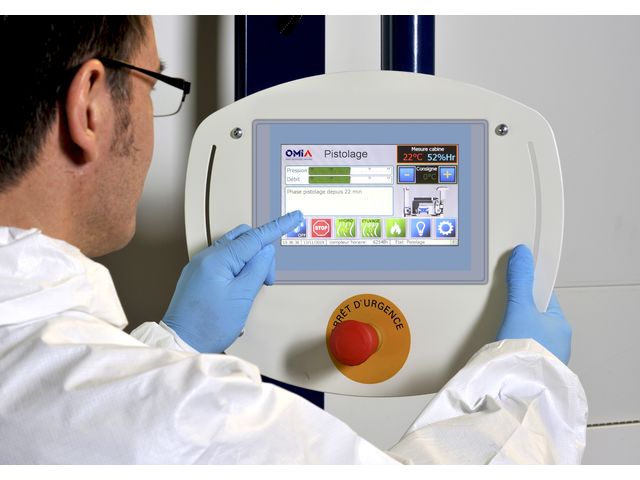

Air Touch : completely ergonomic and interactive control unit - multilingual colour 9' touch screen with browser icons and drop-down menu.

Aerospeed : optimised and directional flaps for incoming and outgoing air flows (reduced motor currents).

Isolpax : booth enclosure panel with self-centred fitting consisting of heat-insulated lining made from high-density, rigid rock wool.

Isophonia : general acoustic treatment – less than 75 dB(A) inside the booth.

Protect Planete : Materials and components that are more than 90% recyclable (reduced greenhouse gas emissions).

Energia Report : Energy cost indicator for repairs on the touch screen. Control your energy consumption.

LED (OPTION)

Hygro control (OPTIONAL) : Indicator constantly reporting the relative humidity level inside the booth. Prevents unnecessary overheating!

Pack eco : Automatic ventilation control according to operationa! Phases (Variable frequency drives on motor).

STATE-OF-THE-ART TECHNOLOGY

3 filtration levels

Function automation through a programmable logic controller

IRC 85% high-resolution lighting - daylight tubes in IP54 sealed casing with electronic ballasts

Configuration on civil works or metal base (with external full ramp / integrated mobile ramp depending on the formula)

Heating via direct-fired gas burner in an air flow

Floor with extraction system and galvanised gratings - Optimum floor surface area for extraction

Numerous layout possibilities

Wide range of different dimensions

Advantages :

- Design

- Ergonomics and operator comfort

- Productivity

- Energy savings

- Environmentally friendly

Compliance :

NF EN 16985 "Coating plants. Combined booths. Safety requirements"

Machinery Directive 2006/42/EC depending on the equipment

Directive on VOCs 2004/42/EC amending and replacing Directive 1999/13/EC of 11 March 1999 (reducing solvent emissions) applicable on 01 January 2007
